Scanstrut SB-8-10 Waterproof Junction Box 10-Way

Waterproof connection for multiple electrical cables

The Scanstrut SB-8-10 Waterproof Junction Box is
perfect for installations if you need to create a waterproof
connection for multiple electrical cables, suitable for areas such
as lockers, Lazarette’s and Tender Bays, the heavy duty junction
box manufactured from marine grade polypropylene and with features
10 screw-down terminals. Additional SB-2G Cable seals required for
IP67 installation.

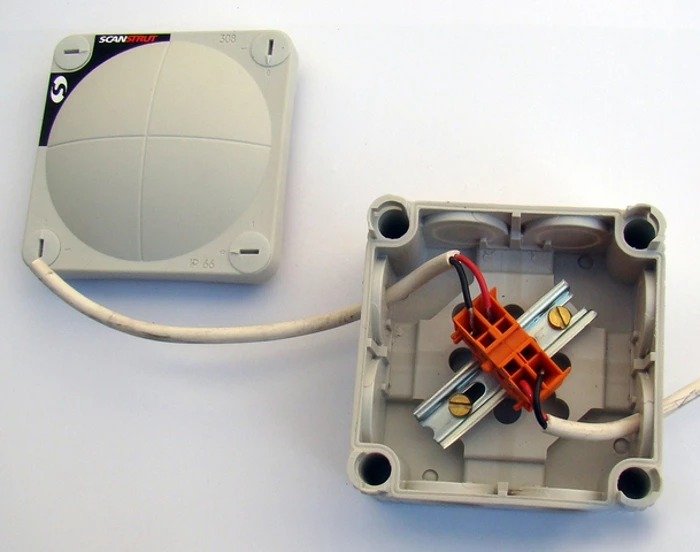

Scanstrut SB-8-10 Waterproof Junction Box
Features:

• Supplied with 10 modular terminal blocks. Offering 10
  terminations
• Depending on the number of terminations required the terminal
  blocks can be individually fitted or blocked together
• Other boxes leave the terminal blocks floating inside, where
  the risk of a loose connection can occur
• Cables push fit into the terminals and are secured with a
  sprung leaf retention system that does not damage the wire
• The terminal can be removed for easy fitting of cables
• Terminal securely clips into the base of the box
• Supplied with self-tapping screws for installation
• Supplied with an installation bracket that allows quick and
  easy fit and removal for inspection etc
• Dimensions: 85 x 85 x 50mm (3.35 x 3.35 x 2 inches)

Technical Drawing
