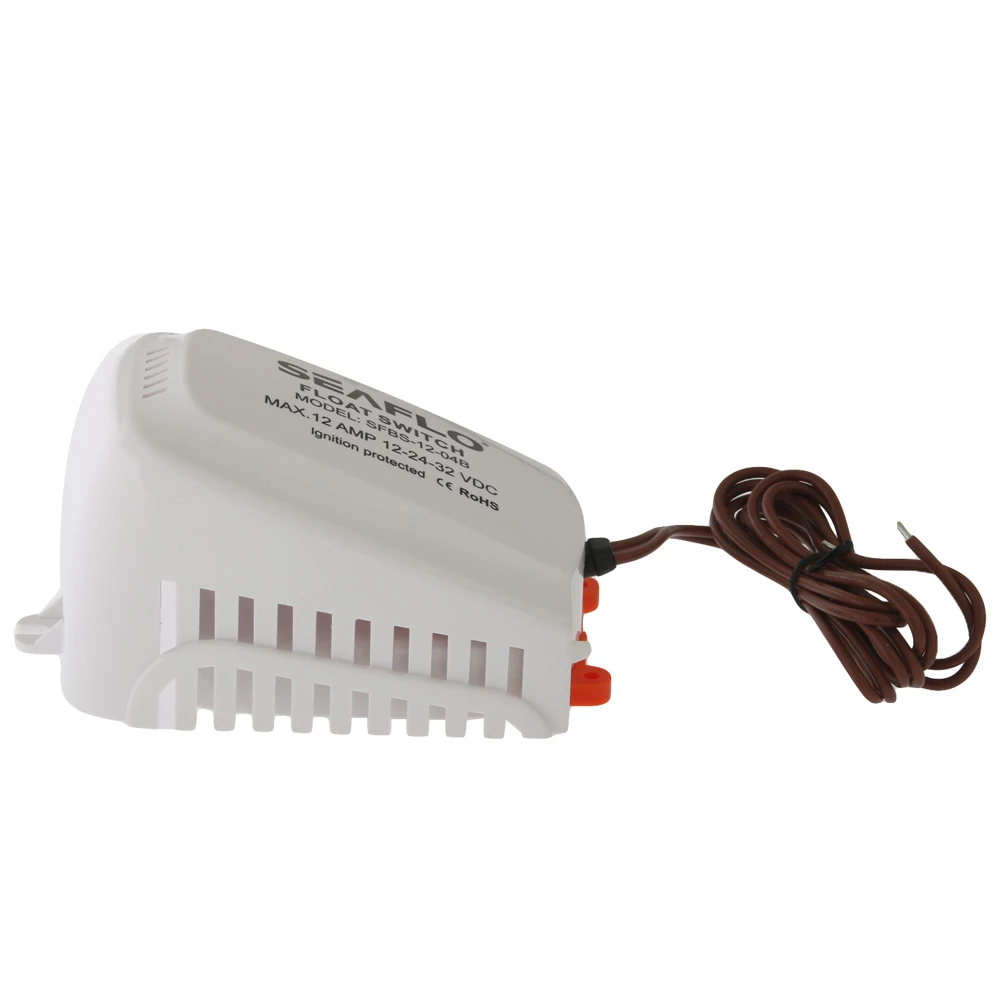

Seaflo 04 Series Float Switch With Protective Filter 12A

Flawless operation

The Seaflo 04 Series Float Switch with Protective
Filter is mercury free, and is the switch of choice for
selective boaters all over the world. Featuring quality design and
construction to offer reliable engagement of your bilge pump. It’s
used for pumps drawing up to 12 amps. Seaflo float switches are
designed for use with fresh water and saltwater only.

Seaflo 04 Series Float Switch with Protective Filter
Features:

• Amp draws up to 12A
• Ideal flow sensor for bilge pump
• Mercury-free
• Compact design, easy installation
• With Filter housing to prevent debris
• Turns on when water level higher than 45-55mm (1.77″ –
  1.97″)
• Turns off when water level lower than 20-25mm (0.79″ –
  0.98″)
• Designed for use with fresh water and salt water only

Seaflo 04 Series Float Switch with Protective Filter

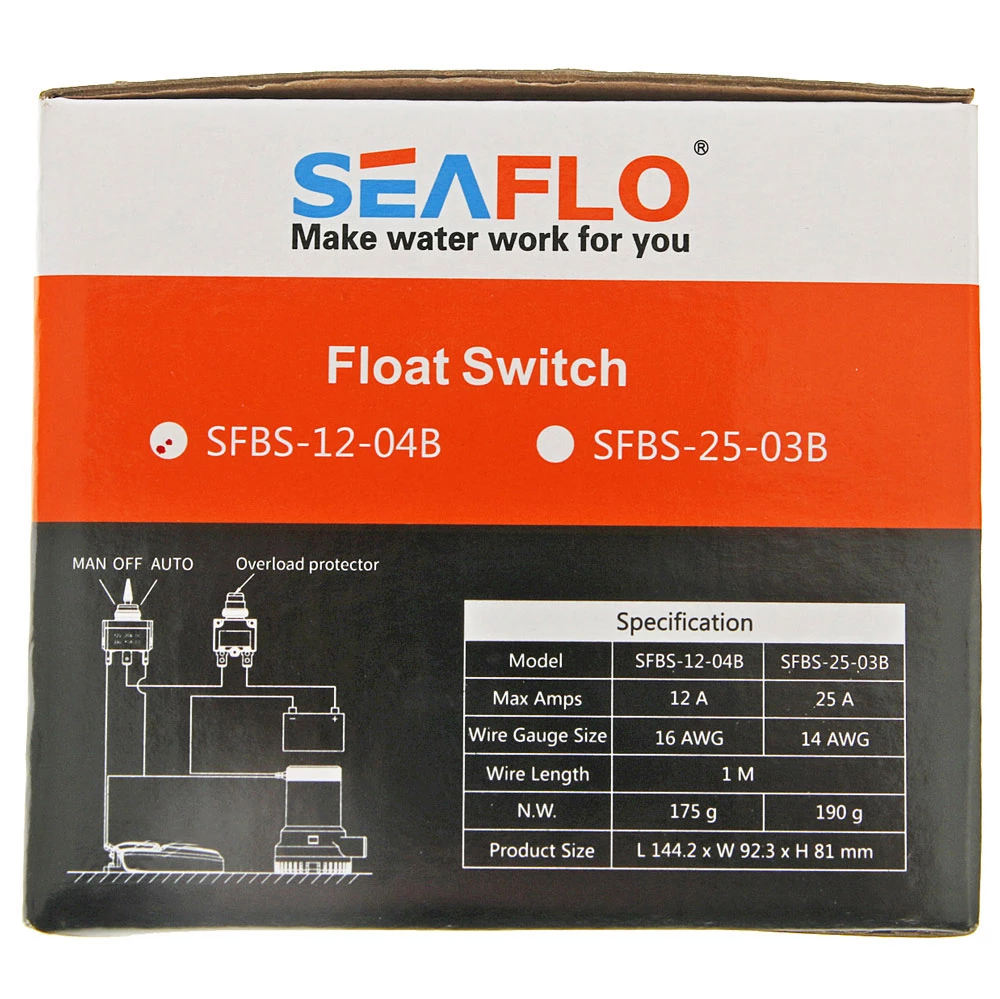

Specifications:

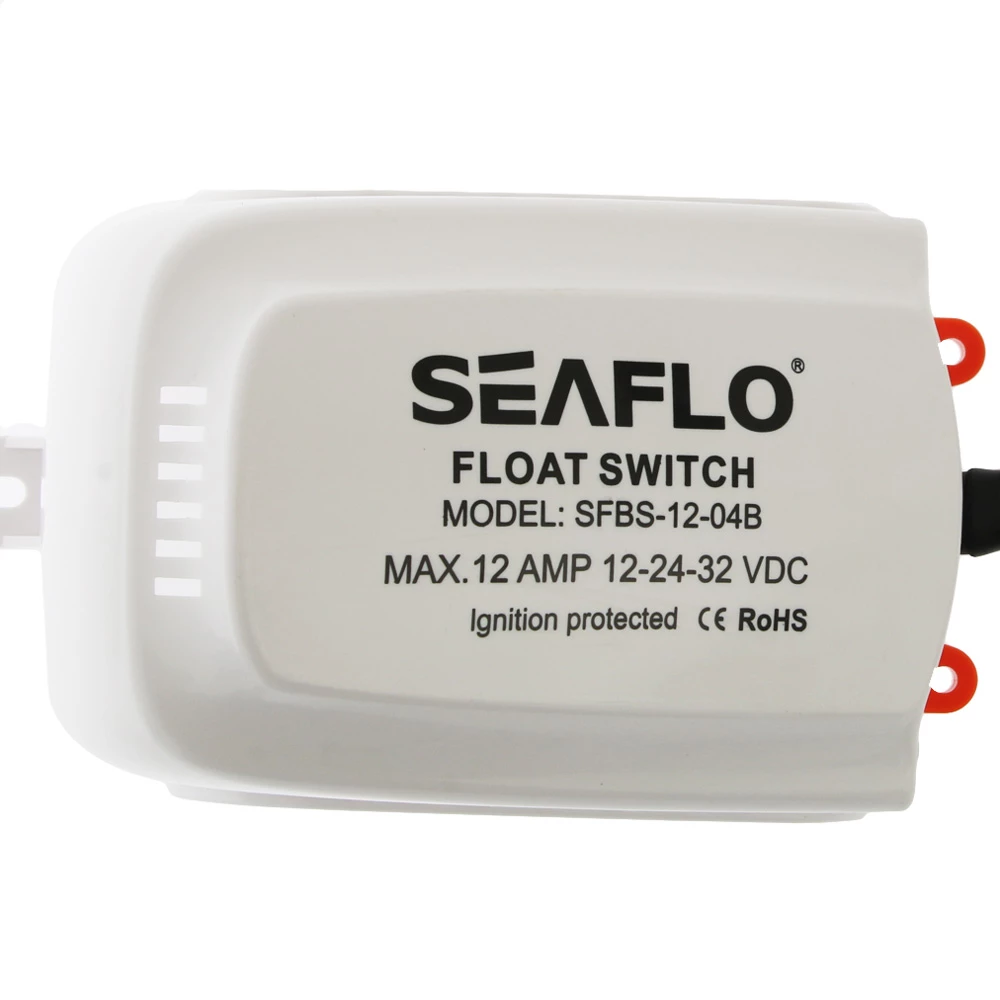

• Model: SFBS-12-04B
• Max Amps 12v: 12 A
• Filter Housing: YES
• Wire Lead: 1m
• Wire Gauge Size: 16 AWG
• Net Weight: 175g
