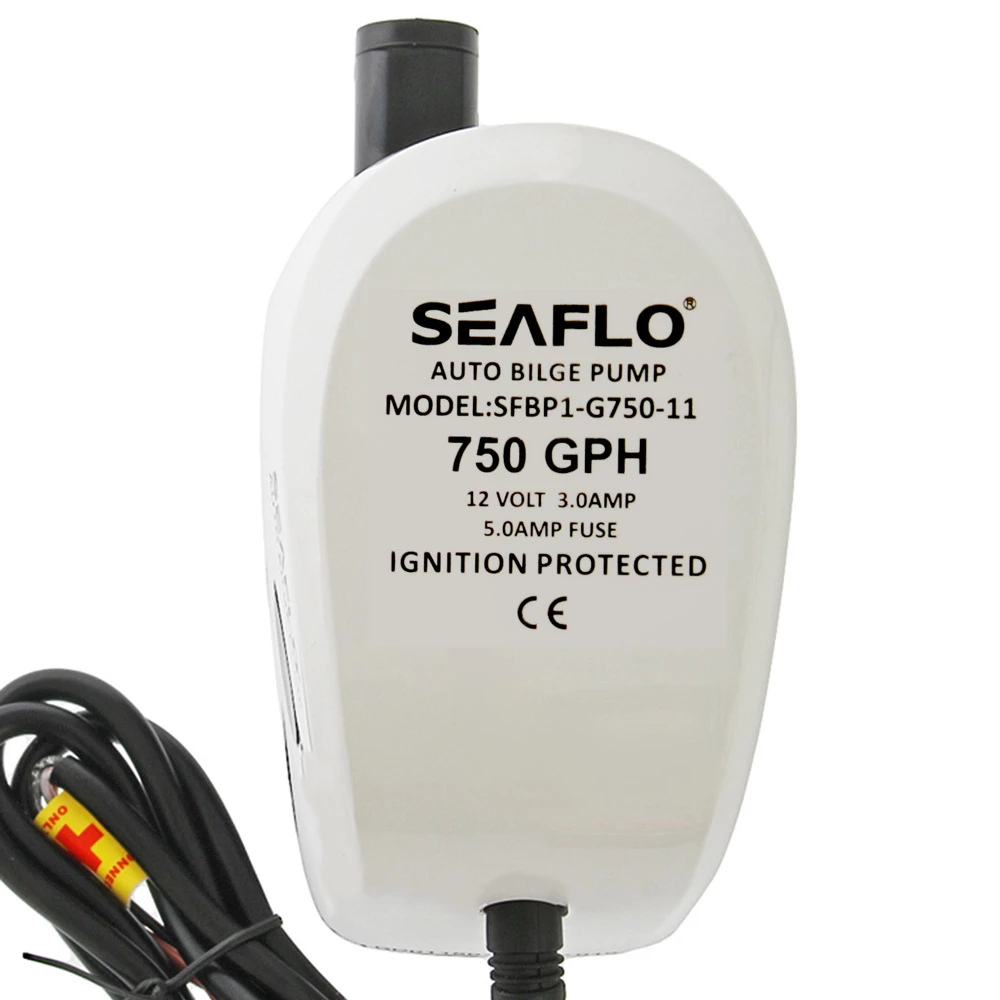

Seaflo 11 Series Auto Bilge Pump 12v 750GPH

All-in-one easy-install automatic bilge pump!

The Seaflo 11 Series Auto Bilge Pump 12v 750GPH
features Seaflo’s revolutionary, patented design. This is an
all-in-one pump and float switch. Not only is it super easy to
install, it is a complete, fully automatic bilge pump, and no
additional float switch required. The Seaflo 11 Series Auto
Bilge Pump 12v 750GPH turns on when water level rises &
shuts off when water is removed.

Seaflo 11 Series Auto Bilge Pump 12v 750GPH
Specifications:

Model	Flow Rate	Voltage	Max Draw	Fuse Amps	Head	Wire Lead	Outlet Dia	N.W. / G.W.
SFBP1-G750-11	750 GPH	12V	3.0 A	5.0 A	9ft (3m)	3ft (1m)	3/4in	0.55/0.6 kg

Seaflo 11 Series Auto Bilge Pump 12v 750GPH

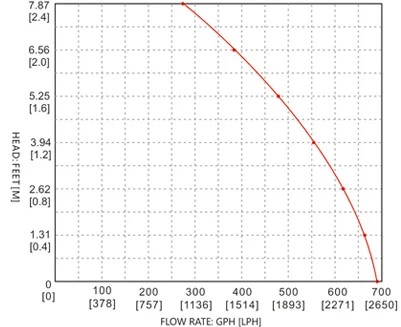

Performance:

Voltage(V)	Current(A)	Flow	Flow	Head(M)
		GPH	LPH
12	2.6	690	2612	0
12	2.6	680	2574	0.4
12	2.7	620	2347	0.8
12	2.7	560	2120	1.2
12	2.8	430	1628	1.6
12	2.8	370	1400	2
12	2.8	320	1211	2.4

Seaflo 11 Series Auto Bilge Pump 12v 750GPH Components and
Materials:

Key	Description	Composing Material
1	Automatic pump cover	ABS
2	Automatic pump motor cover	ABS
3	Screw	Stainless steel
4	Motor bracket	Galvanized iron
5	Motor	SPCC
6	Oil seal seat	POM
7	Flat washer	ABS
8	Double reed single small circuit board	PCB
9	Relay circuit finished board	PCB
10	Automatic pump motor under cover	ABS
11	Screw	Stainless steel
12	Waterproof seal	ABS
13	Five leaf impeller	POM
14	Automatic pump runner connector	ABS
15	Automatic pump under cover filter	ABS
16	Filter small net	ABS
17	Screw	Stainless steel
18	Magnet blue float	ABS+ Magnet
19	Float Blank	ABS
20	Round bar line card	NBR70°
21	Jacket thread 3 * 0.75	PVC+ Copper

Seaflo 11 Series Auto Bilge Pump 12v 750GPH Component Chart with
Key Guide
