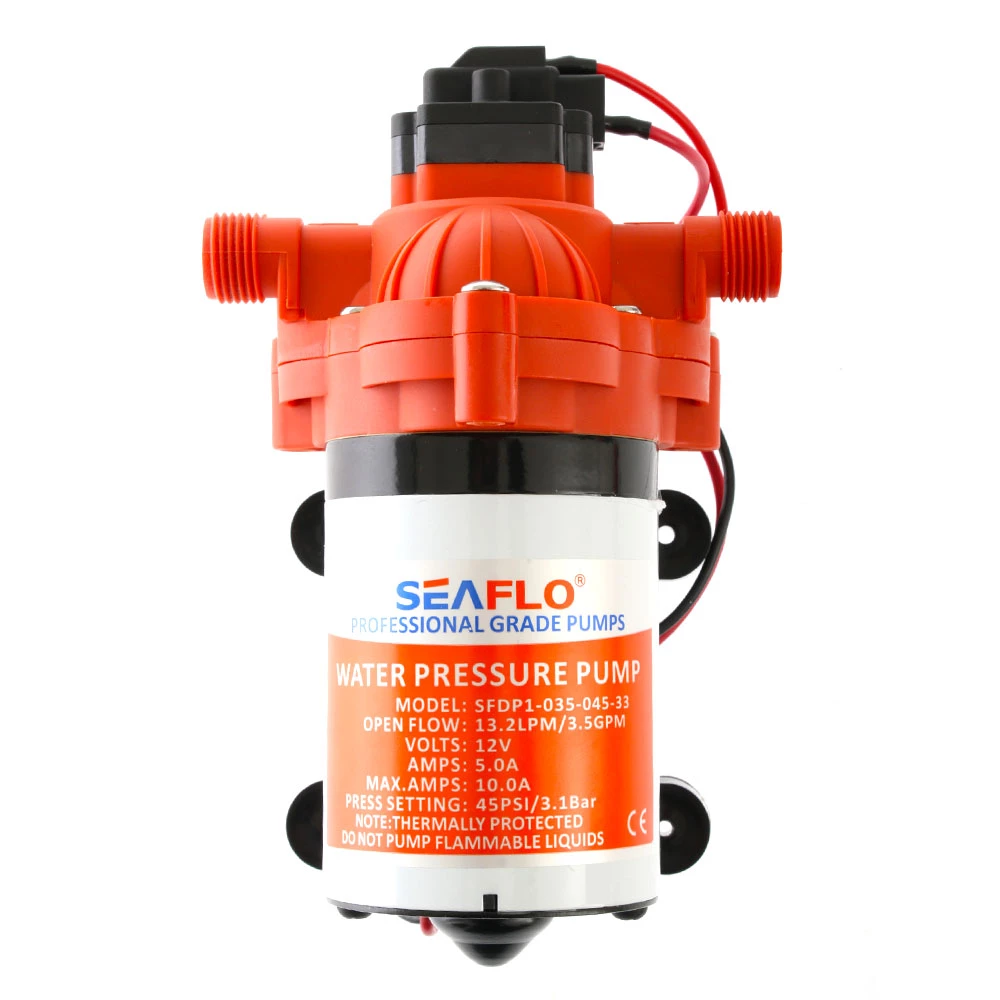

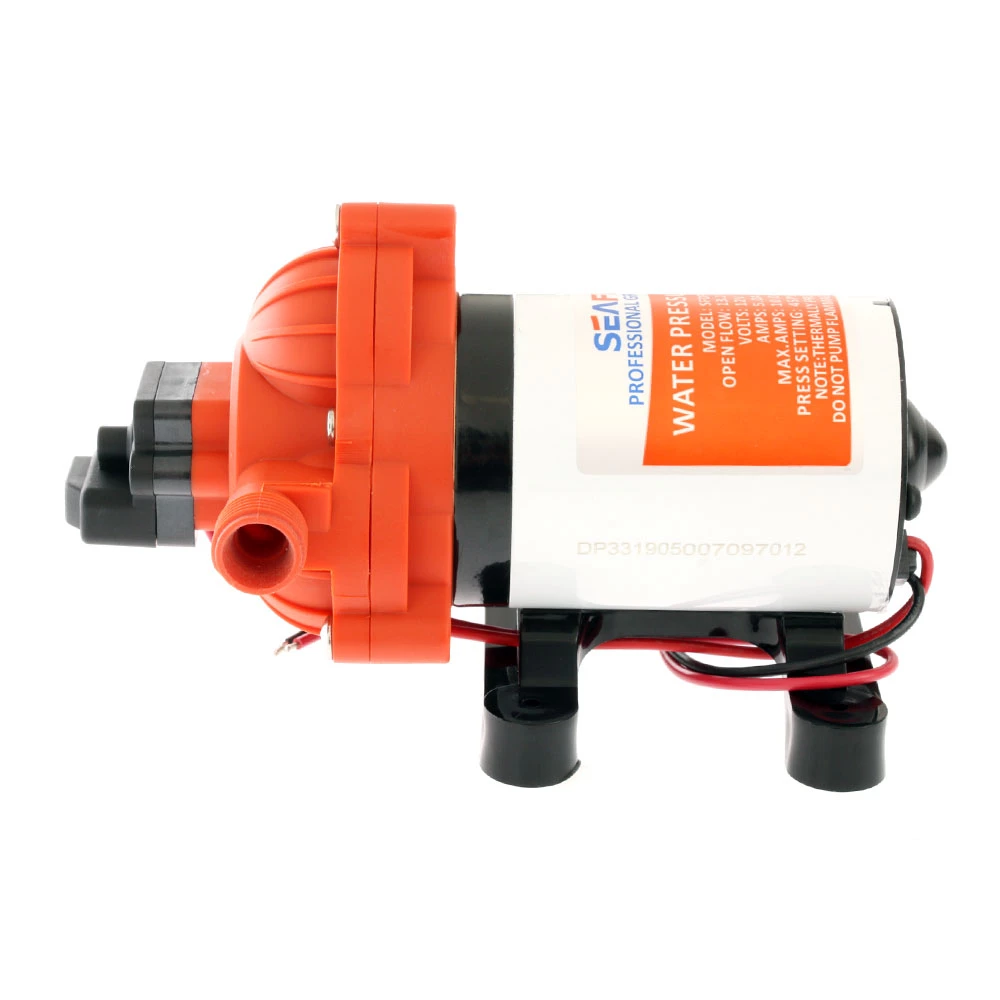

Seaflo 3 Chamber Diaphragm Pump 13.2LPM 12v

Highly efficient diaphragm pump

Looking for an efficient way to pump out bilge from your boat?
Well, the Seaflo 33 Series Automatic Diaphragm
Pump features no moving parts in the airstream, perfect if
you hate those noisy pumps.. It’s a positive displacement pump that
uses a combination of the reciprocating action of a rubber,
thermoplastic or Teflon diaphragm and suitable valves either side
of the diaphragm to pump a fluid.

How a Diaphragm Pump Works
In front of the motor is a valve assembly containing two to five
valve pump chambers. Each valve chamber has a diaphragm behind it
in the lower pump housing. As the motor shaft turns, an internal
cam positioned behind the diaphragms causes the diaphragms to be
pushed forward, then back in a continuous sequence creating a
suction. As this suction builds, fluid is pulled through the inlet,
through the various valve chamber check valves to the outlet.

Seaflo 33 Series Automatic Diaphragm Pump
Features:

• Type: Pump
• Drainage & Irrigation Mode: Sprinkler Irrigation
  Equipment
• Diaphragm: Santoprene
• Valve: EPDM/Viton
• Certification: CE, ISO9001:2008, RoHS
• Motor Type: 12V DC Permanent Magnet, Totally Enclosed,
  Non-Ven
• Duty Cycle: Intermittent
• Applications: Marine, RB, Agricultural Spraying, General
  Industrial, Filtration, Beverage Processing, Solar Water
  System
• Type: 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Seaflo 33 Series Automatic Diaphragm Pump
Specifications:

• Model number: SFDP1-035-045-33
• Voltage: 12
• Port dimension: 0.82″(20.95mm)
• Flow rate: 13.2/3.5lmp/gpm
• Pressure off: 45/3.1psi
• Amp draw: 3.5A
• Max draw: 7.0A
• Packing size: 260*140*125mm
• N.W/G.W (kg): 1.0/2.1
• Priming Capabilities :6 feet (1.8 m) suction lift
• Hose tail size: 1/2in (13mm)
