Seaflo 3 Chamber Washdown Pump Kit 3GPM 11.6LPM 12v

Enough power and pressure for tough deck and anchor
cleaning

The Seaflo 3 Chamber Washdown Pump Kit includes
everything you need for tough washdown applications all in one box.
The 3-chamber positive displacement diaphragm pump gives you smooth
and quiet flow with self priming, 12v pressure control. For
enhanced protection in any wet environment, it’s designed with
multi-corrosion step protection and seamless motor body plus rubber
mounting feet. Plus, it has an on-demand switch, so the pump
automatically turns on when you squeeze the spray gun handle.

Ideal for cleaning leisure boats, fish boxes, anchor chains and
dinghies. The kit includes the next generation Seaflo pump,
fittings, nozzle, raw water strainer and 25ft coiled hose.

Seaflo 3 Chamber Washdown Pump Kit Features:

• Thermal overload protected automatically stops motor should it
  overheat due to overload, with Automatic Restart feature
• Adjustable pressure switch from 17-60 psi for OEM when
  needed

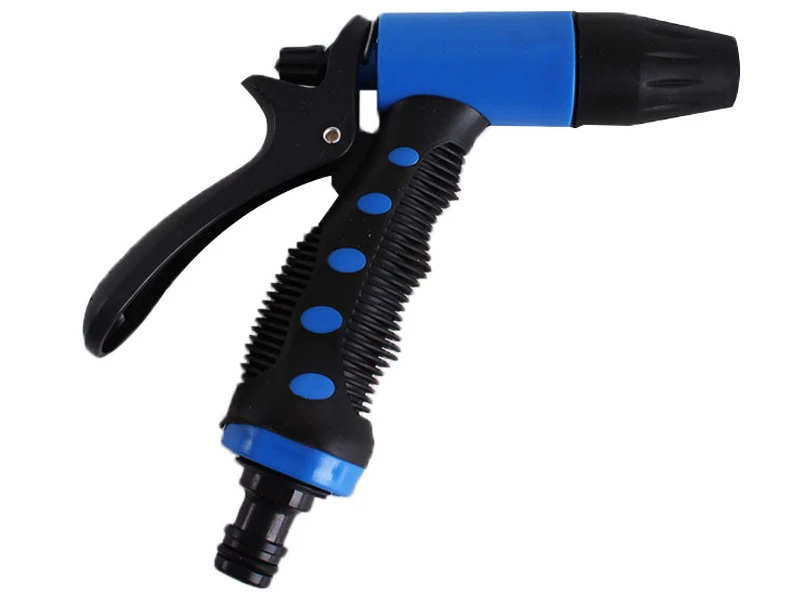

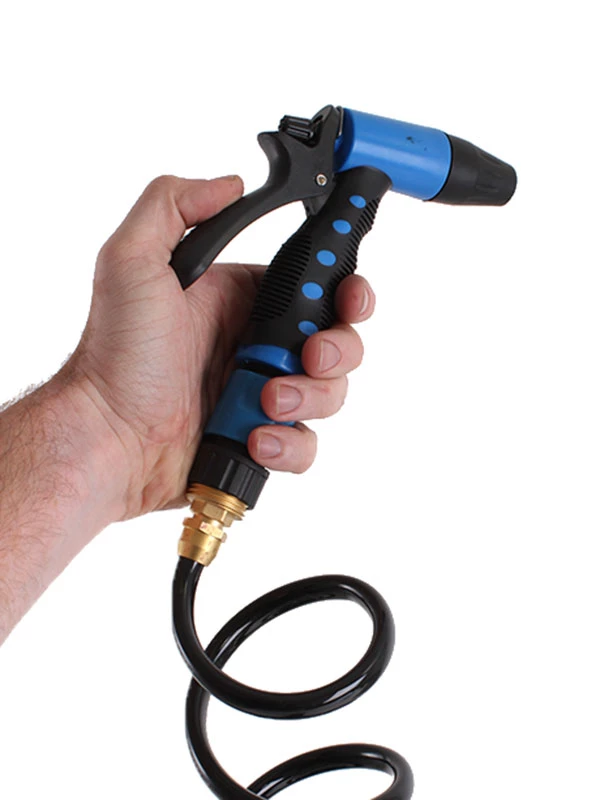

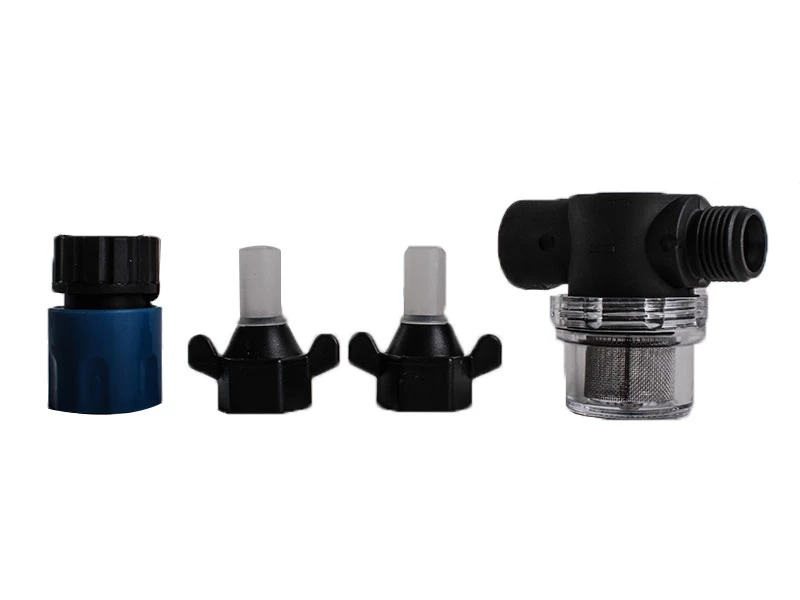

• Supplied complete with hose, trigger nozzle, fittings and
  strainer
• Multi-step corrosion protection and seamless motor body for
  enhanced protection in any wet environment
• Rubber mounting feet for corrosion protection and noise
  reduction
• Ideal for cleaning leisure boats, fish boxes, anchor chains and
  dinghies

Seaflo 3 Chamber Washdown Pump Kit
Specifications:

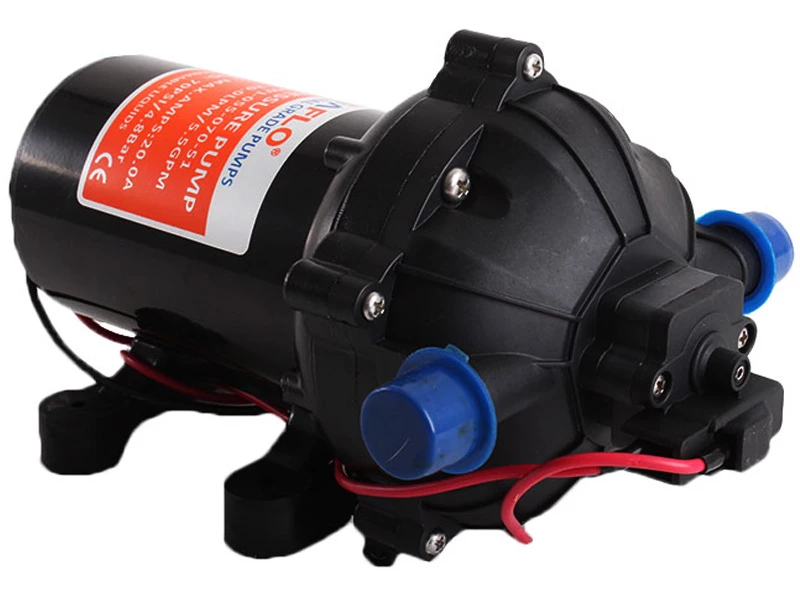

Pump

• Model: SFWP1-030-070-33
• Type: 3 Chamber positive displacement diaphragm pump, self
  priming, capable of being run dry
• Control type: Pressure switch
• Valves: EPDM
• Diaphragm: Santoprene
• Wire connections: 2-Pin/Leads
• Max recommended temperature: 60° C（140° F）
• Priming capabilities: 6 feet (1.8 m) suction lift
• Open flow (GPM/LPM): 3.0 / 11.6
• Re-start pressure: Shut-off Pressure 70PSI : 56 PSI ±5 PSI
  (±0.3 bar)
• Inlet/outlet ports: 1/2″-14 MNPT
• Max draw: 12.0A
• Voltage: 12V
• Weight: 1.9 lbs (4.2 kg)

Motor

• Leads: 16 AWG, 13″ (33cm) long with 2-Pin
  connector/Leads
• Duty cycle: Intermittent
• Max.amp draw: 12.0A
• Fuse: 18.0 A
