Seaflo 4 Chamber Portable Washdown Pump Kit 12V 70PSI

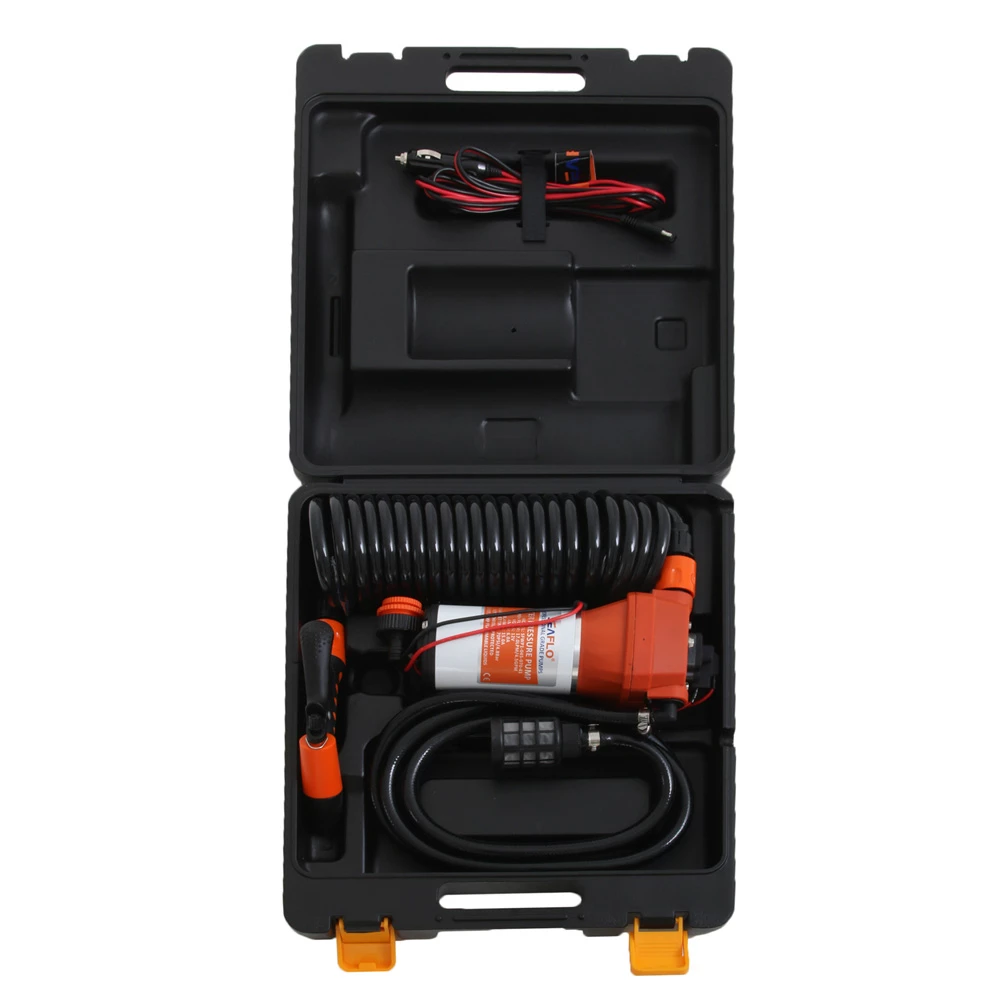

Complete portable washdown system

The Seaflo 4 Chamber Portable Washdown Pump Kit
includes everything you’ll ever need for tough washdown
applications. The 4-chamber diaphragm pump gives you smooth and
quiet flow with a self-priming, pressure control. This pump has a
built-in switch, so the pump automatically turns on when you
squeeze the spray gun handle. Ideal for cleaning leisure boats,
fish boxes, anchor chains and dinghies. It can even clean cars,
bikes and other vehicles, and is a perfect option for those that
need to clean on the go. Plus it comes in a heavy-duty case making
it easy to use, store, and carry!

Seaflo 4 Chamber Portable Washdown Pump Kit
Features:

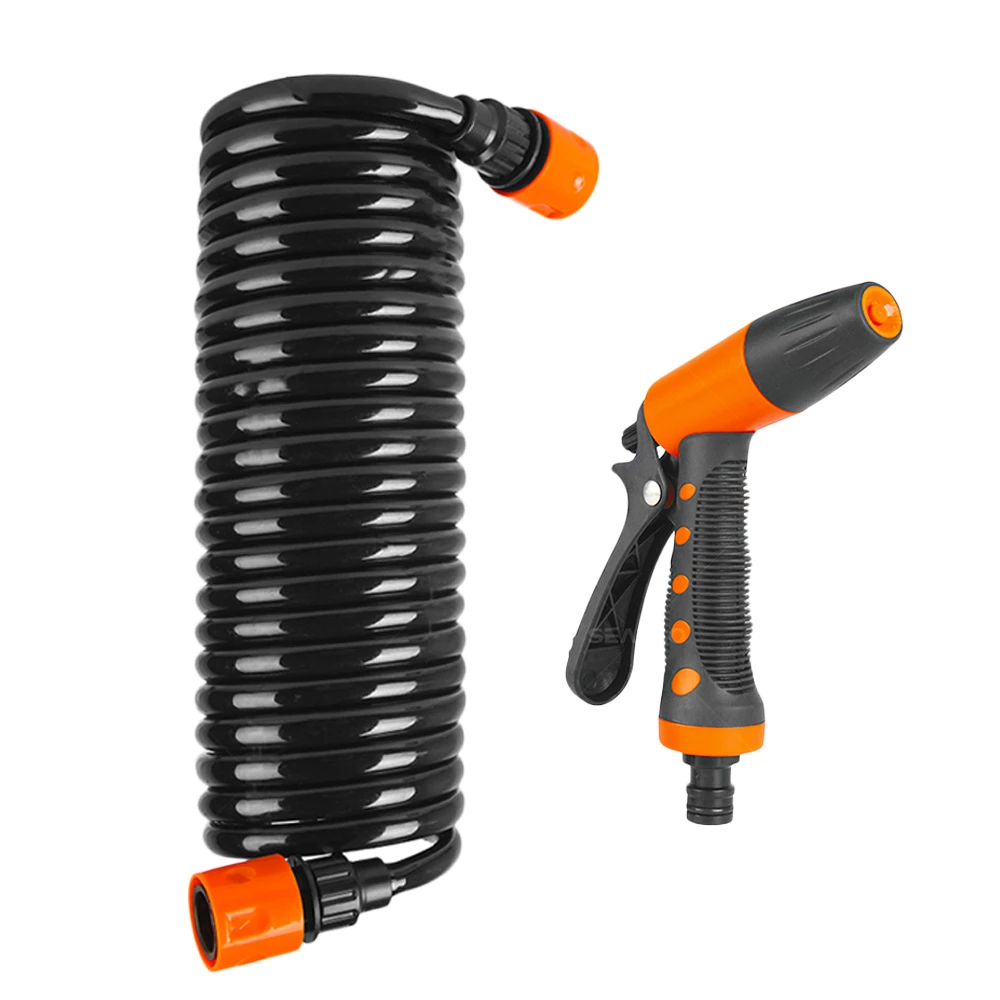

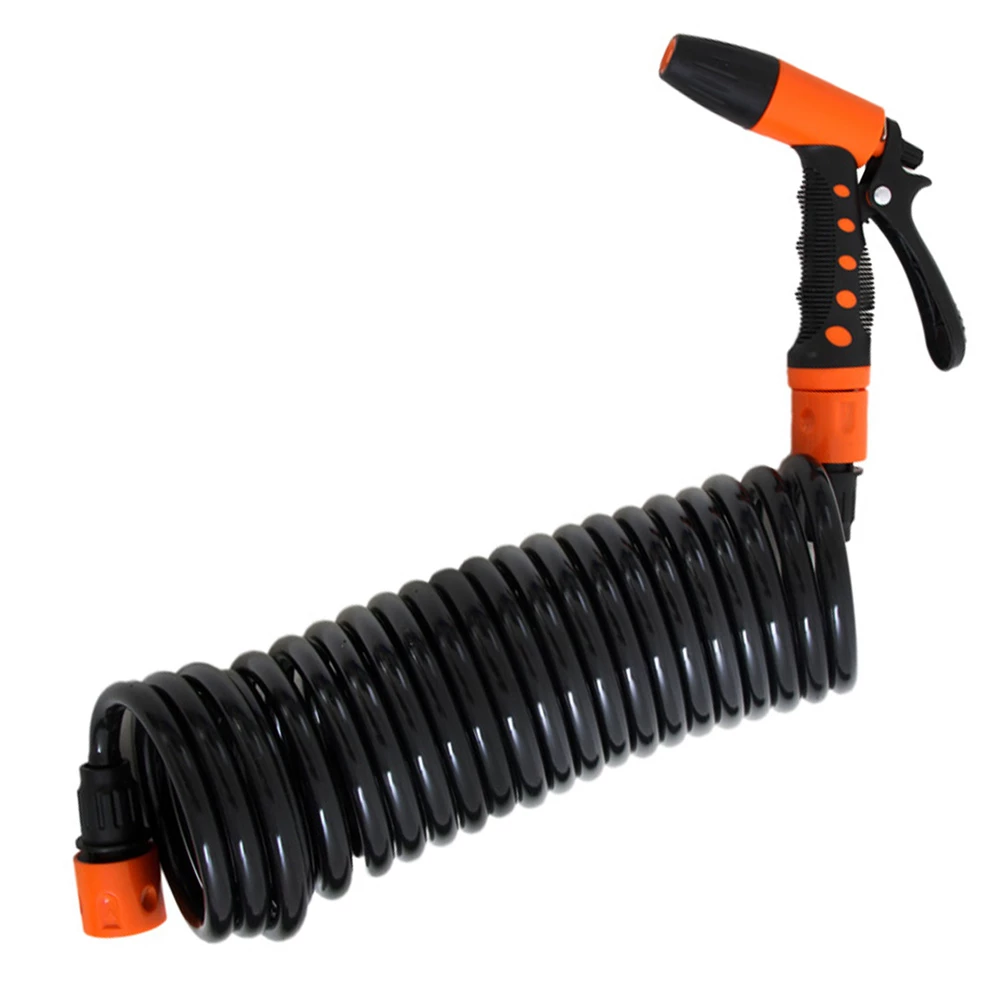

• 6m UV-protected coiled hose
• 2m inlet hose
• Adjustable nozzle spray
• Built-in bypass valve
• Smooth and steady flow
• Easy to use, store, and carry
• Quiet operation

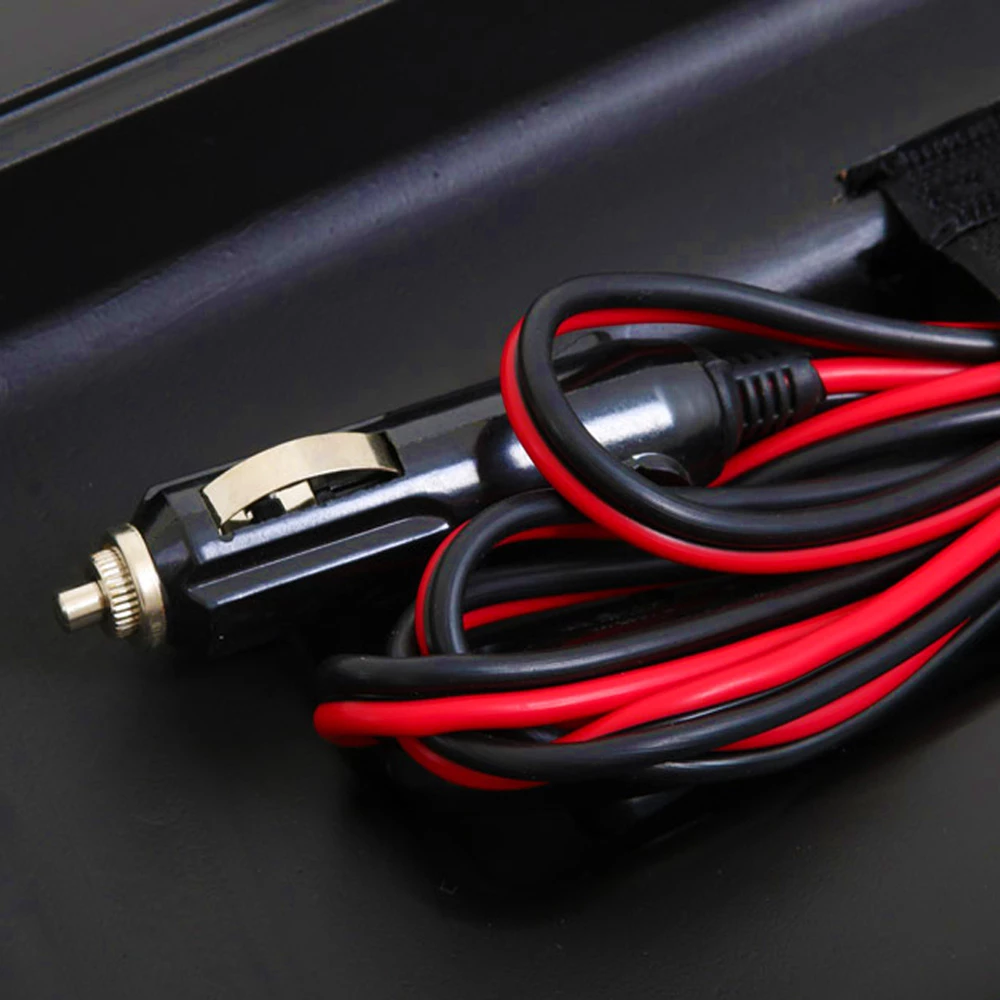

• Cigarette lighter lead connector

Seaflo 4 Chamber Portable Washdown Pump Kit
Specifications:

Pump

• 4-chamber positive displacement diaphragm pump, can run dry
  without damage, self-priming
• Mode: on-demand and bypass
• Liquid temperature: 60 ° C (140 ° F)
• Priming capabilities: 1.8 m (6 ft) suction lift
• Max pressure: 70 PS (4.8 bar)
• Weight: 5kg (11 lb)

Motor

• Maximum current: 17.0A
• Fuse: 25.5A
• Duty cycle: intermittent
• Leads: 16 AWG. 4.5″ long with 2-pin connector/leads
• Voltage: 12V

General Specifications

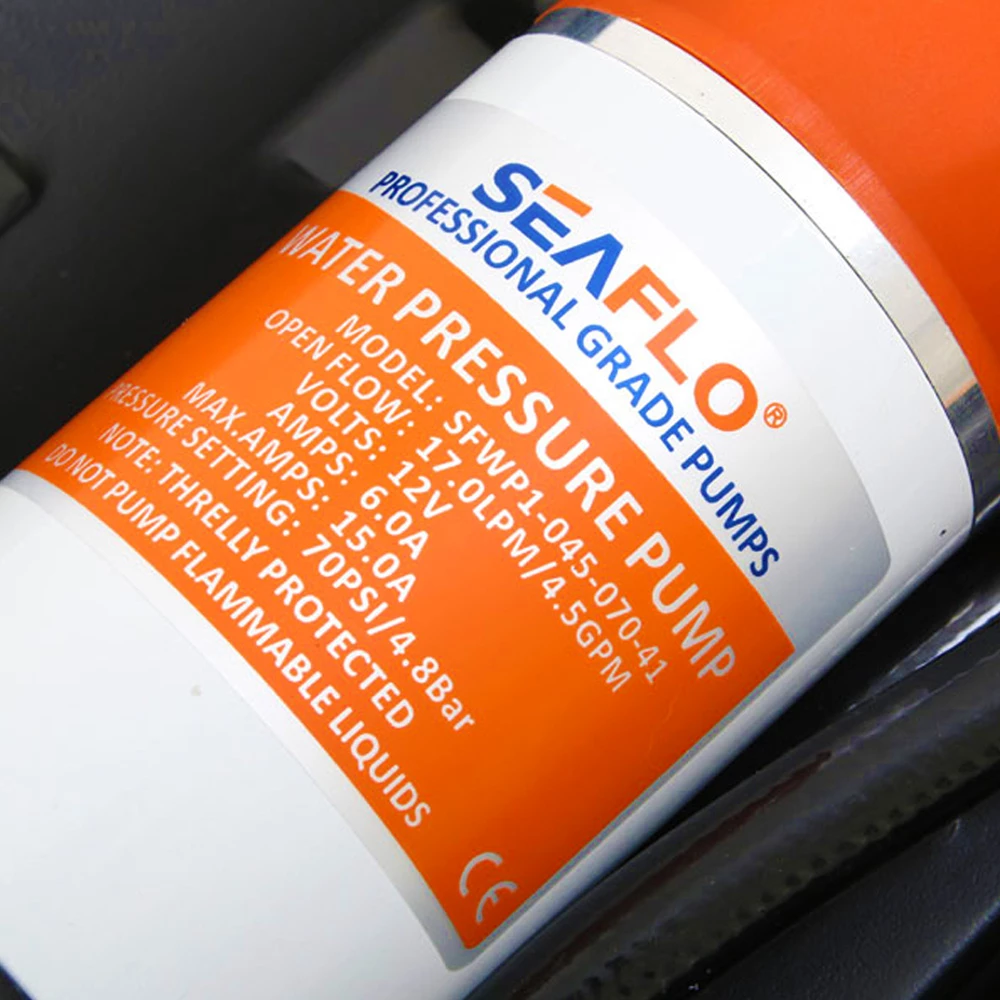

• Model number: SFWP1-045-070-01
• Maximum flow GPM/LPG: 4.5 / 17.0
• Control method: Pressure switch and bypass switch
• Max draw: 17.0 A
• Shut off pressure (PSI/BAR): 70 / 4.8
• Valve material: EPDM
• Diaphragm material: Santoprene
• Ports: quick attach
• Wire connections: 2 pin/leads
