Seaflo 42 Series Washdown Pump Kit With 7.5m Coiled Hose 15LPM 24V

Seaflo’s heavy-duty washdown kit

Featuring superior quality and performance, the Seaflo 42 Series Washdown Pump Kit is the top choice for cleaning boats, fish boxes, anchor wells, dinghies and other similar applications. This heavy-duty pump kit boasts a huge 4.0 GPM capacity. The pump sports an on-demand switch, so it automatically turns on when you squeeze the spray gun handle. With 55 PSI cutoff, this has the pressure to get rid of the most stubborn debris. The Seaflo 42 Series Washdown Pump Kit is perfectly suitable for fresh and saltwater applications.

Seaflo 42 Series Washdown Pump Kit Features:

• Ideal for cleaning boats, fish boxes, anchor wells, dinghies and other similar applications
• Self priming up to 1.83m / 6ft
• Spray gun range 10m / 32.81ft
• UV protected hose-pipe, 6.5m / 20ft
• Anticorrosive stoving varnish coated motor
• Dry run capability
• Intermittent duty
• Rubber mounting feet for corrosion protection and noise reduction
• Supplied complete with hose, trigger nozzle, fittings and strainer

Seaflo 42 Series Washdown Pump Kit Specifications:

Pump:

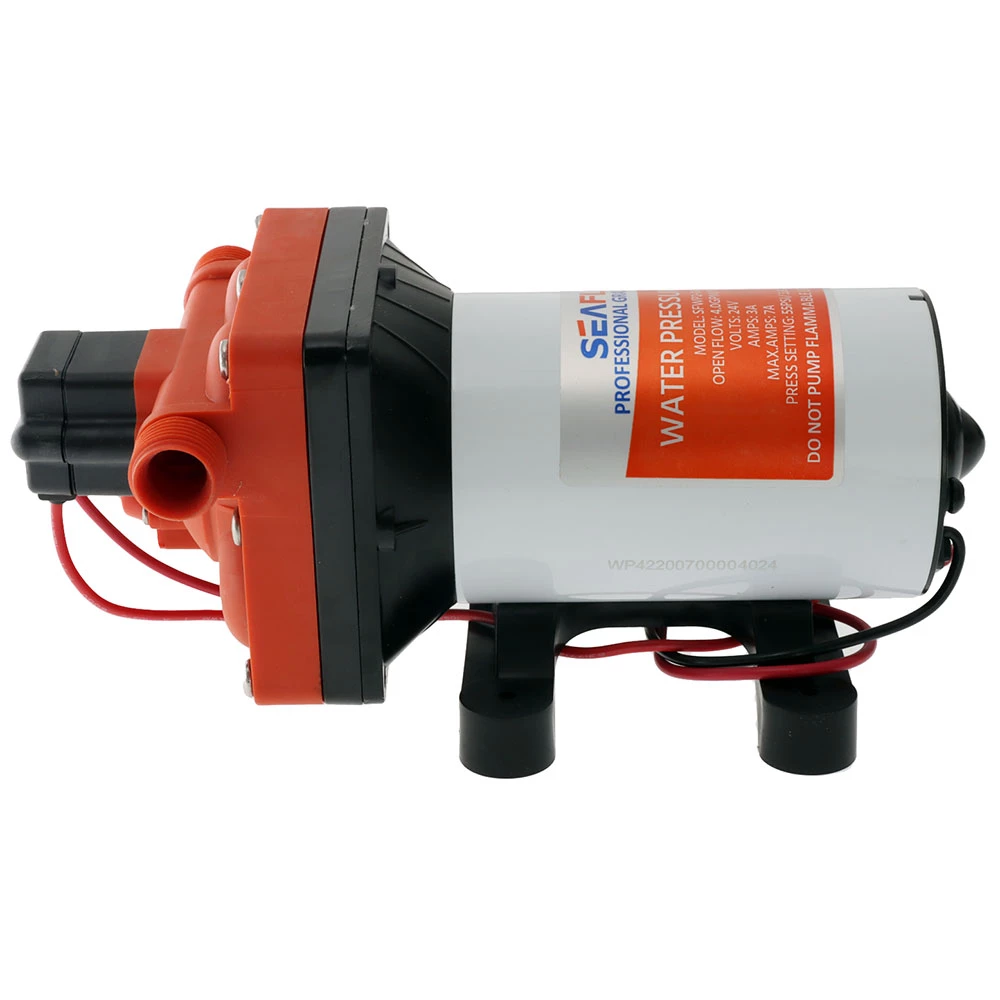

• Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
• Control type: Pressure switch and bypass control
• Max recommended temperature: 60C / 140F
• Priming capabilities: 6 feet (1.8 m) suction lift
• Re-start pressure: Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar)

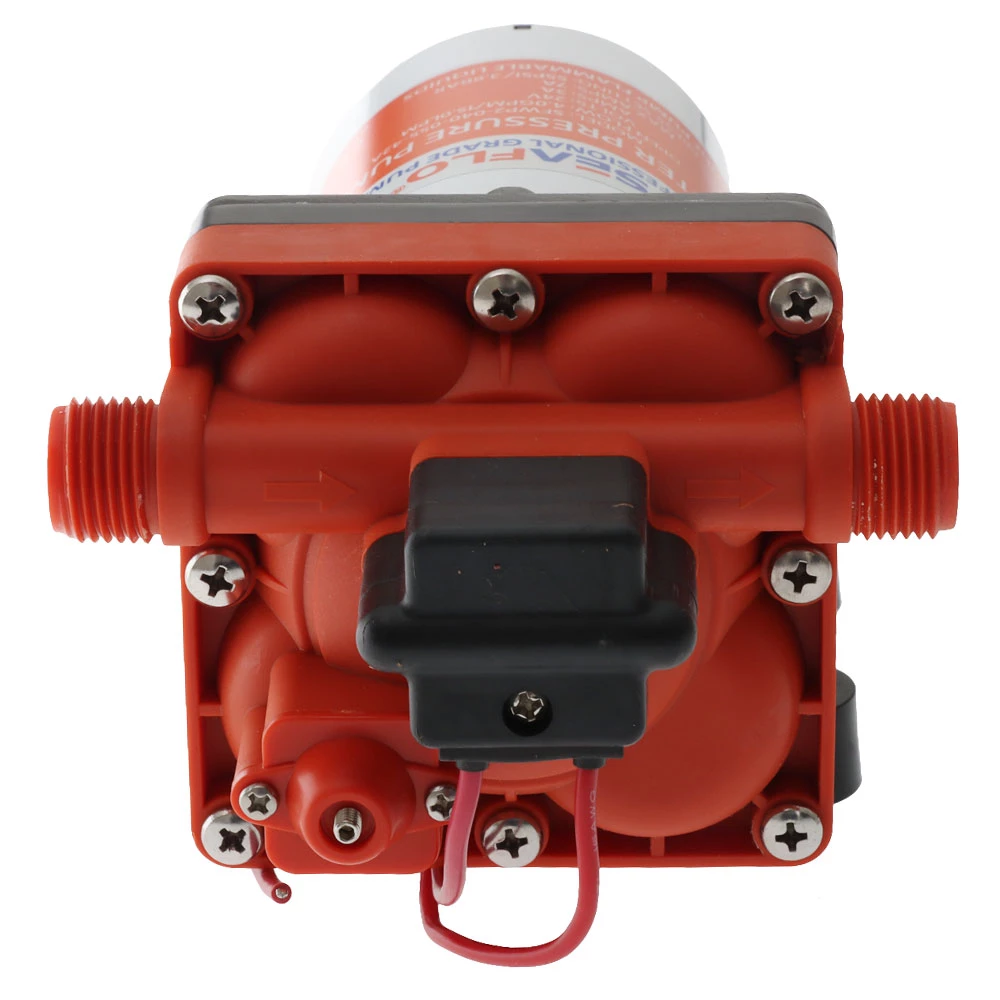

• Inlet / outlet ports: 1/2in-14 MNPT
• Weight: 1.9kg / 4.0lbs

Motor:

• Leads: 16 AWG, 9.4in (24 cm) long with 2-Pin connector/leads
• Duty cycle: Intermittent
• Max Amp draw: 7.5A
• Fuse: 11.3A

Standard Pump Configurations:

• Model: SFWP2-040-055-42A
• Voltage: 24V
• Open flow: 4.0 GMP / 15.0 LPM
• Control type: Switch and bypass
• Max draw: 7.0A
• Shut-off pressure: 55 PSI / 3.8 BAR
• Valves: EPDM
• Diaphragm: Santoprene
• Ports: 1/2in-14 MNPT
• Wire connections: 2-Pin/Leads

Seaflo 42 Series Washdown Pump Kit Product Manual
