Seaflo 51 Series Washdown Pump Kit With 7.5m Coiled Hose 19.7LPM 12V

Seaflo’s heavy-duty washdown kit

Featuring superior quality and performance, the Seaflo 51 Series Washdown Pump Kit is the top choice for cleaning boats, fish boxes, anchor wells, dinghies and other similar applications. This heavy-duty pump kit boasts a huge 5.2 GPM capacity. The pump sports an on-demand switch, so it automatically turns on when you squeeze the spray gun handle. With 70 PSI cutoff, this has the pressure to get rid of the most stubborn debris. The Seaflo 51 Series Washdown Pump Kit is perfectly suitable for fresh and saltwater applications.

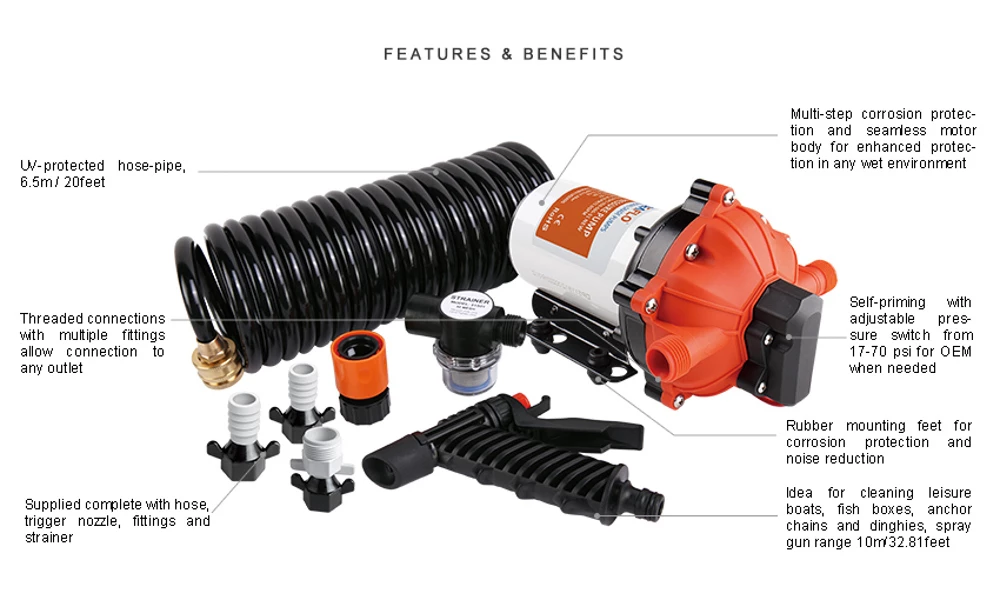

Seaflo 51 Series Washdown Pump Kit Features:

• Ideal for cleaning boats, fish boxes, anchor wells, dinghies and other similar applications
• Self priming up to 1.83m / 6ft
• Spray gun range 10m / 32.81ft
• UV protected hose-pipe, 6.5m / 20ft
• Anticorrosive stoving varnish coated motor
• Dry run capability
• Intermittent duty
• Threaded connections with multiple fittings allow connection to any outlet
• Rubber mounting feet for corrosion protection and noise reduction
• Supplied complete with hose, trigger nozzle, fittings and strainer

Seaflo 51 Series Washdown Pump Kit Specifications:

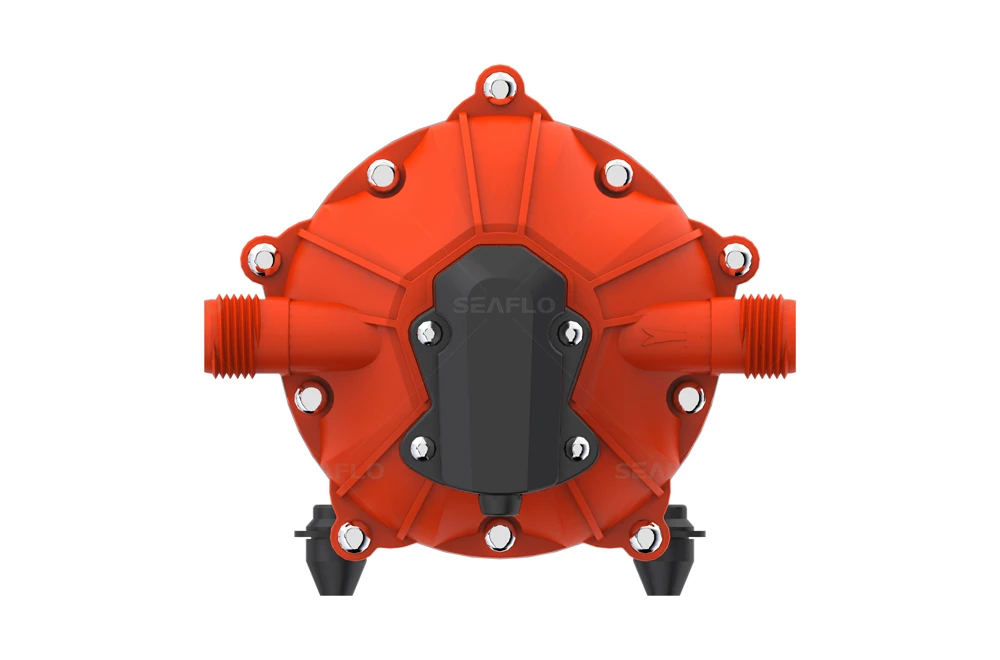

Pump:

• Type:
  5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
• Control type: Pressure switch
• Max recommended temperature: 60C / 140F
• Priming capabilities: 6 feet (1.8 m) suction lift
• Re-start pressure: Shut-off Pressure 70 PSI : 56 PSI ±5 PSI (±0.3 bar)
• Inlet / outlet ports: 1/2in-14 MNPT
• Weight: 2.8kg / 6.1lbs

Motor:

• Leads: 14 AWG, 13in (33 cm) long with 2-Pin connector/leads
• Duty cycle: Intermittent
• Max Amp draw: 18.0A
• Fuse: 27.0A

Standard Pump Configurations:

• Model: SFWP1-052-070-51A
• Voltage: 12V
• Open flow: 5.2 GMP / 19.7 LPM
• Control type: Switch
• Max draw: 18.0
• Shut-off pressure: 70 PSI / 4.8 BAR
• Valves: EPDM
• Diaphragm: Santoprene
• Ports: 1/2in-14 MNPT
• Wire connections: 2-Pin/Leads

Seaflo 51 Series Washdown Kit with 7.5m Coiled Hose Product Manual
