Seaflo Accumulator Pressure Boost System 8L

Smooth and quiet operation

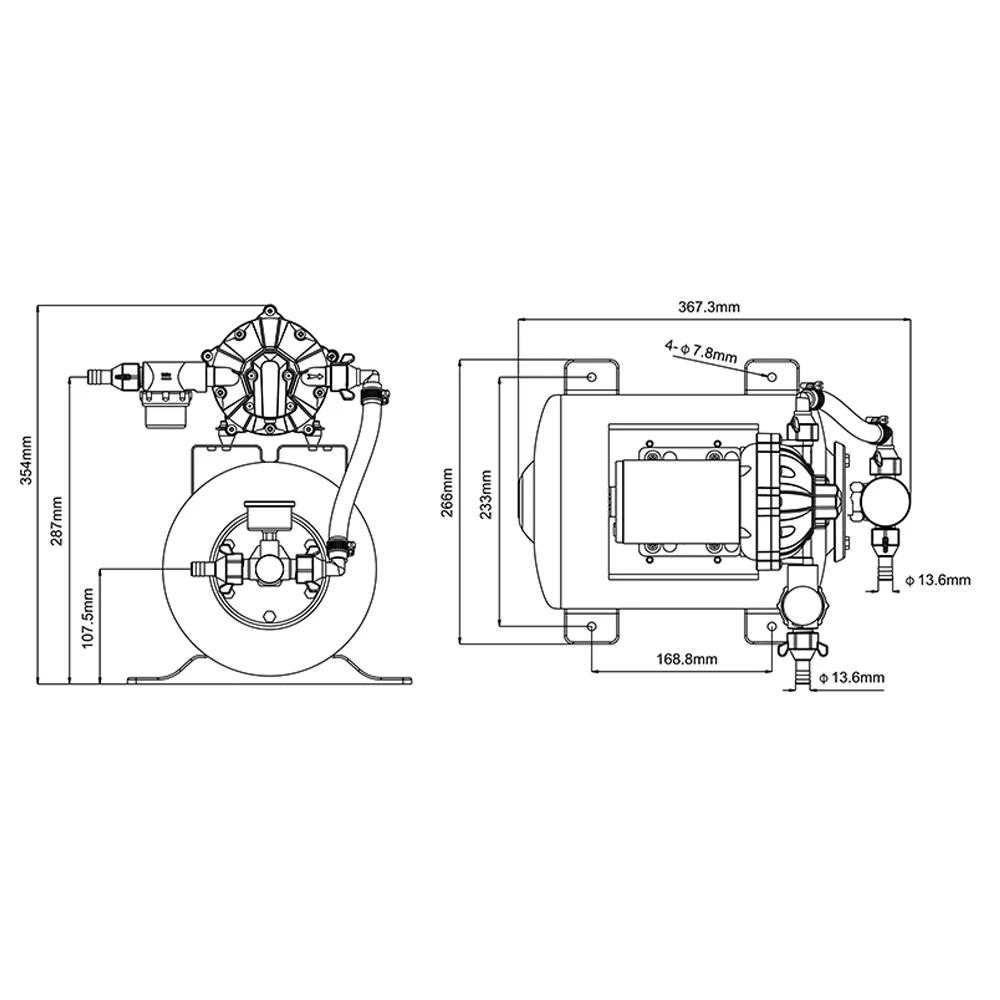

The Seaflo Accumulator Pressure Boost System is a fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 5 chamber diaphragm pump, strainer and pre-pressurised accumulator tank with quick connect electrical connections on a rubber mounted board. Serves 3 or more 1/2″ (13mm) outlets.

Seaflo Accumulator Pressure Boost System Features:

• Smoother flow, quieter water systems
• Longer pump life, lower battery drain
• Self-priming up to 6 feet(1.8m)
• Five chamber diaphragms for smooth and quiet operation
• Can be installed vertically or horizontally accumulator tank
• Maintenance free potable water quality accumulator tank
• Complies with USCG 183.410 and ISO 8846 MARINE(Ignition Protection)
• 16 AWG, 4.5″ long leads

Seaflo Accumulator Pressure Boost System Specifications:

General

• Typical Applications: Marine, RV, filtration
• Type: 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
• Control Type: Pressure switch
• Max Recommended Temperature: 60° C (40° F)
• Priming Capabilities: 6 feet (1.8 m) suction lift
• Re-start Pressure: Shut-on Pressure 20 PSI ：20 PSI ±3 PSI | Shut-off Pressure 60 PSI ：60 PSI ±3 PSI
• Inlet/Outlet Ports: 1/2″-14 MNPT
• Weight: 11.9 lbs (5.4 kg)
• Tank volume: 8L
• Wire connections: 2-Pin/leads

Motor

• Leads: 14 AWG, 13″ (33 cm) long with 2-Pin connector/leads
• Duty Cycle: Continuous
• Max.Amp Draw: 18.9 A
• Fuse: 28.4 A

Standard Pump Configurations

Model	Voltage	Open Flow (GPM/LPM)	Pressure On (PSR/BAR)	Pressure Off (PSI/BAR)	Max Draw
SFWSK1-040-060-0021	12V	4.0 / 15.0	20 / 1.4	60 / 4.2	13.0A
SFWSK2-040-060-0021	24V	4.0 / 15.0	20 / 1.4	60 / 4.2	7.0A
SFWSK1-050-060-0021	12V	5.0 / 18.9	20 / 1.4	60 / 4.2	17.0A
SFWSK2-050-060-0021	24V	5.0 / 18.9	20 / 1.4	60 / 4.2	9.0A
