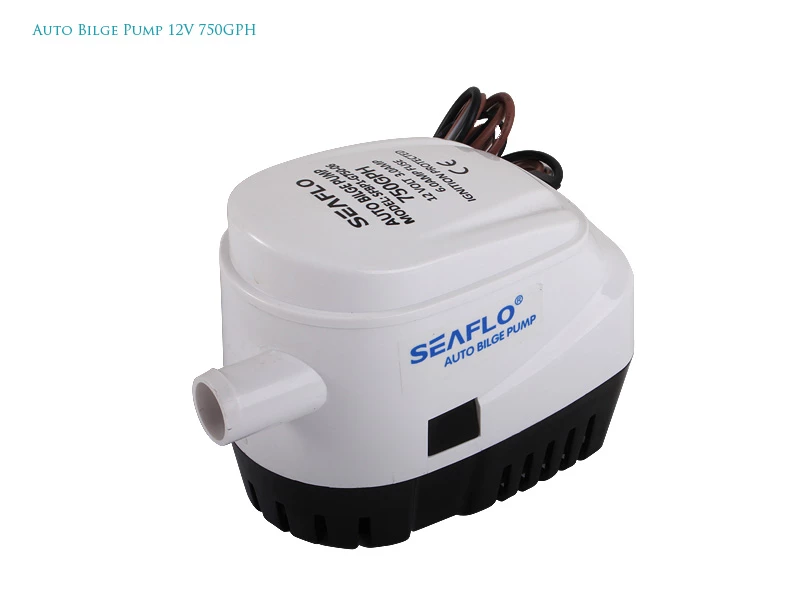

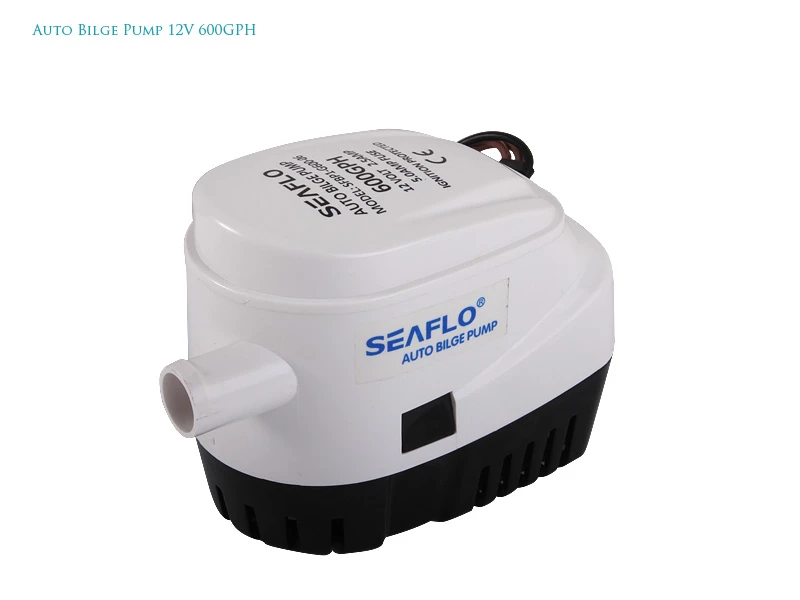

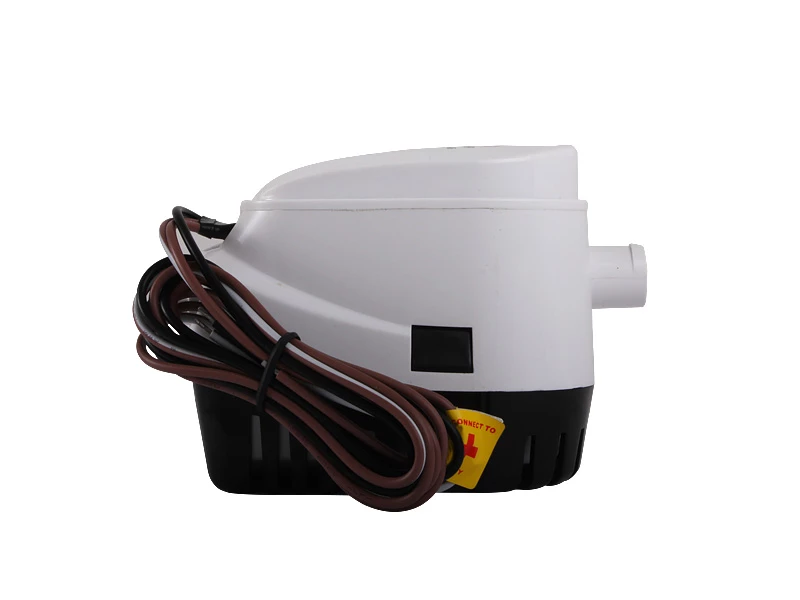

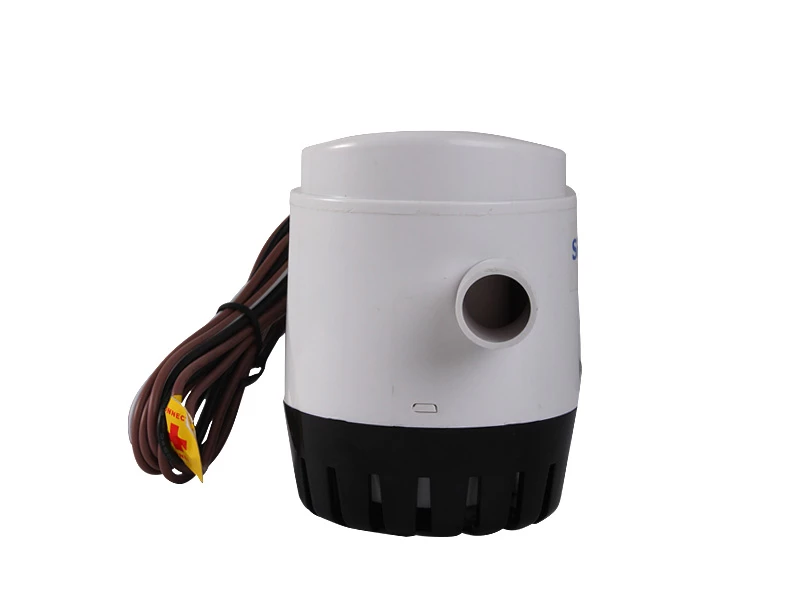

Seaflo Auto Bilge Pump

Fully automatic bilge pump

Get rid of accumulated water in the bilge in no time with the
Seaflo Auto Bilge Pump. This submersible bilge
pump is fitted with a stainless steel shaft and a heavy duty motor
with an impact resistant ABS housing. The best part, it’s fully
automatic! No separate float switch is needed and no power is used
until pump turns on when water rises. This pump is available in 600
and 750 gallons per hour flow rates – perfect for general use. It’s
comforting to know that if your boat takes on water you can pump it
out fast.

Installation Instructions
When the brown white wire of the auto bilge pump is connected to
the battery’s positive (+) terminal, the black wire is connected to
the battery’s negative (-) terminal, the pump has automatic
function.
1. When the water level rise above the bottom flay surface of the
strainer 40-50mm, the float switch’s contact point is connected
then the pump works.
2. When the water level dropped to 20-30mm above the bottom flat
surface of the strainer, the float switch’s contact point is
disconnected, the float switch stops working, and then the pump
ceases to work meanwhile.When the brown wire of the auto bilge pump
is connected to the battery positive (+) terminal, the black wire
is connected to the battery’s negative (-) terminal, this pump is
same as the ordinary bilge pump and has no automatic function.

Seaflo Auto Bilge Pump Features:

• Equipped with built in electronic controlled reed sensor system
  to make fully automatic operation easy
• No separate float switch is needed
• No power use until pump turns on when water rises (Auto bilge
  pump)
• Compact, rust and corrosion protected stainless steel shaft,
  high-impact durable and thermoplastic ABS plastic housing
• High Flow: for use from 22lpm to 234lpm (1.32-14.04 cubic
  meters / hour)
• Small size, high efficiency, low current
• Totally submersible and ignition protected with anti airlock
  design and moisture tight seals
• To all existing safety standard
• Snap-lock strainer base for easy installation and removal and
  silent vibration-free running
• Run dry with no problem
• Dimensions (750 GPH) (L x W x H): 150 x 80 x 100mm

Seaflo Auto Bilge Pump Specifications:

Note: Be certain that power source is 12 volt
DC/24 volt DC. Highter voltage will damage the pump.
