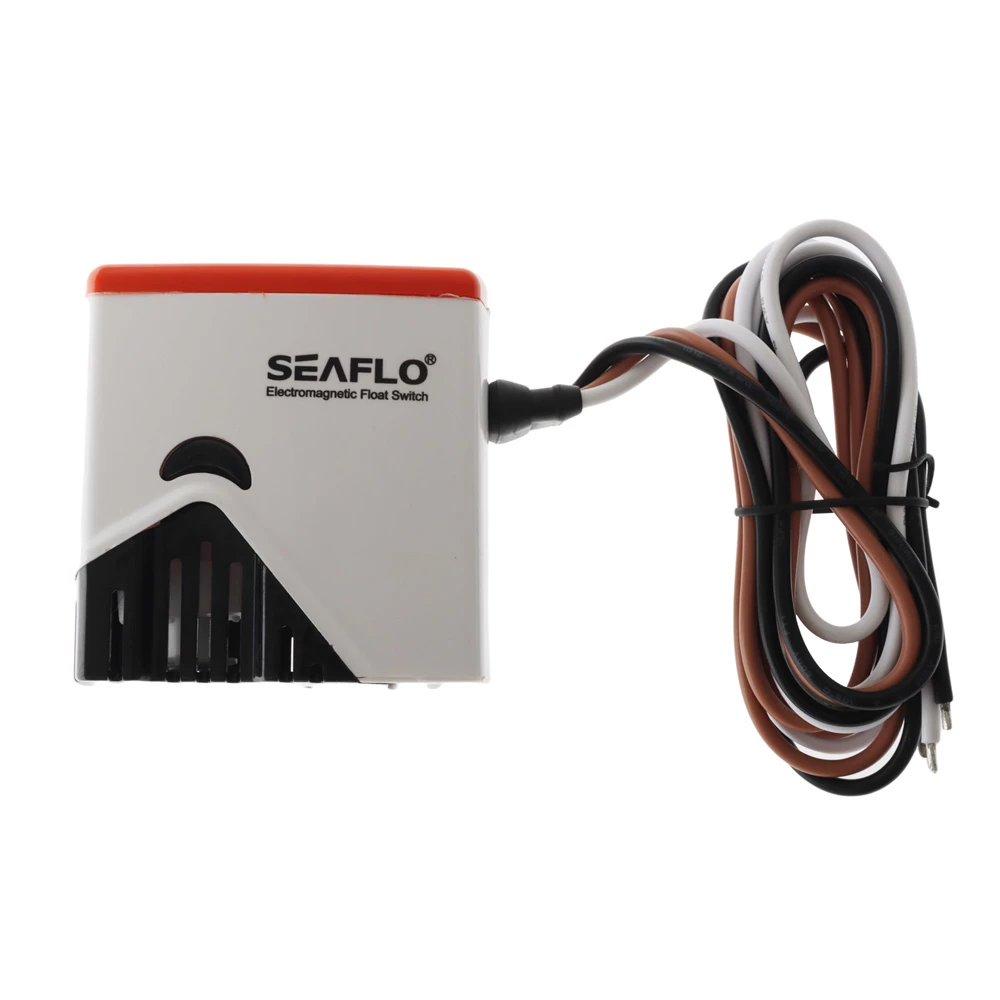

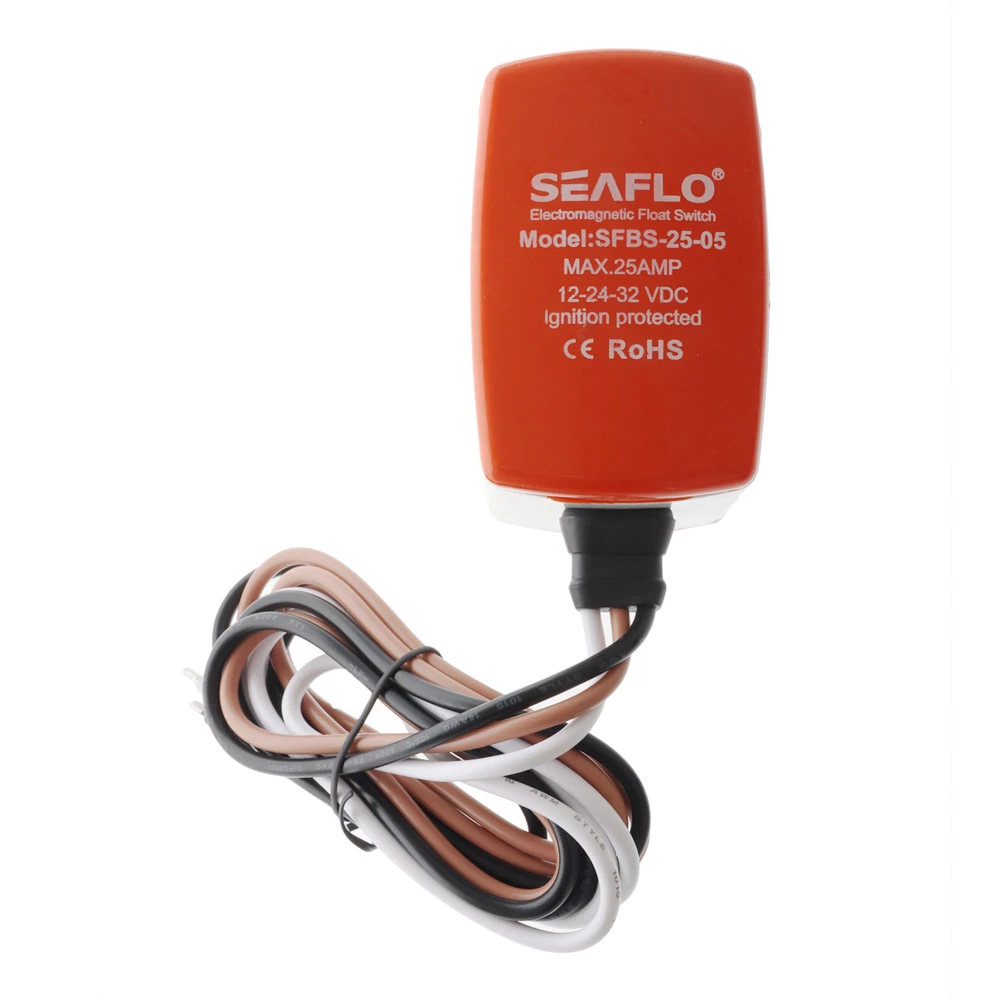

Seaflo Bilge Pump Electromagnetic Float Switch 05 Series

Superior quality and performance

The Seaflo Bilge Pump Electromagnetic Float Switch offers superior performance over other float switches on the market. The design’s enclosure helps eliminate large debris from reaching the switch mechanism, which is the number one point of failure on traditional switches. Its innovative Electromagnetic design uses a magnetic force to actuate seal failure and water intrusion. The unique robust internals also allows this switch to be used for pumps drawing up to 25 Amps. The Seaflo Bilge Pump Electromagnetic Float Switch is the most reliable switch readily available on the market today!

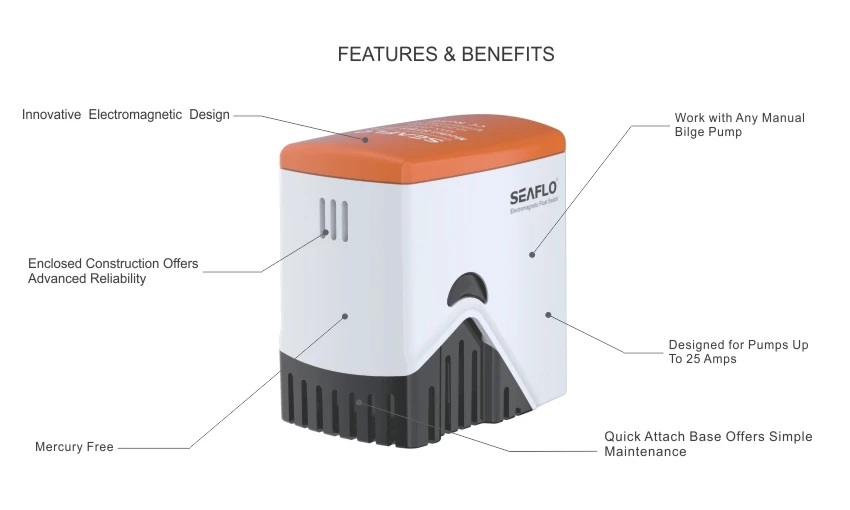

Seaflo Bilge Pump Electromagnetic Float Switch Features:

• Innovative electromagnetic design
• Enclosed construction offers advanced reliability
• Quick attach base offers simple maintenance
• Works with any manual bilge pump
• Designed for pumps up to 25 amps
• Mercury free

Seaflo Bilge Pump Electromagnetic Float Switch Specifications:

• Max Amps: 25A
• Wire length: 1m / 39.27in
• Wire gauge size: 14AWG
• Net weight: 232g
• For use with 12V, 24V and 32V DC voltage only

Seaflo Bilge Pump Electromagnetic Float Switch 05 Series Product Manual
