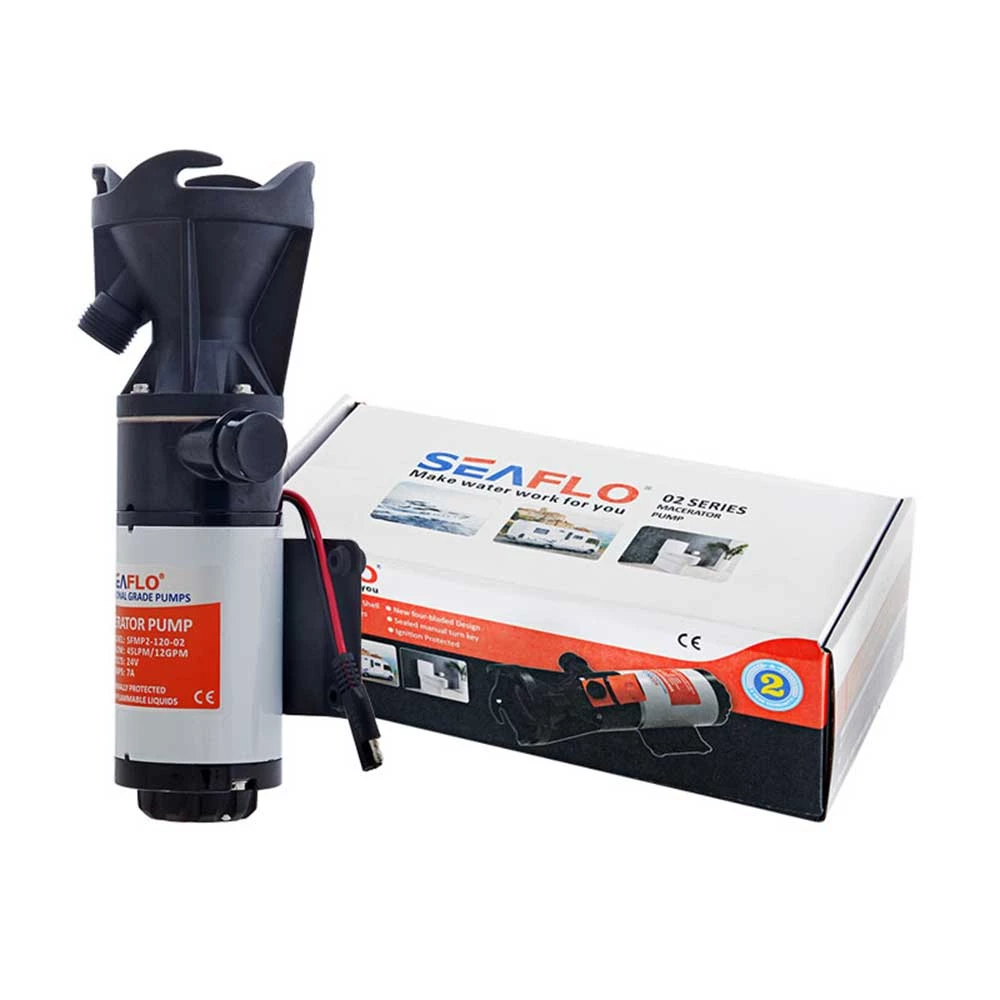

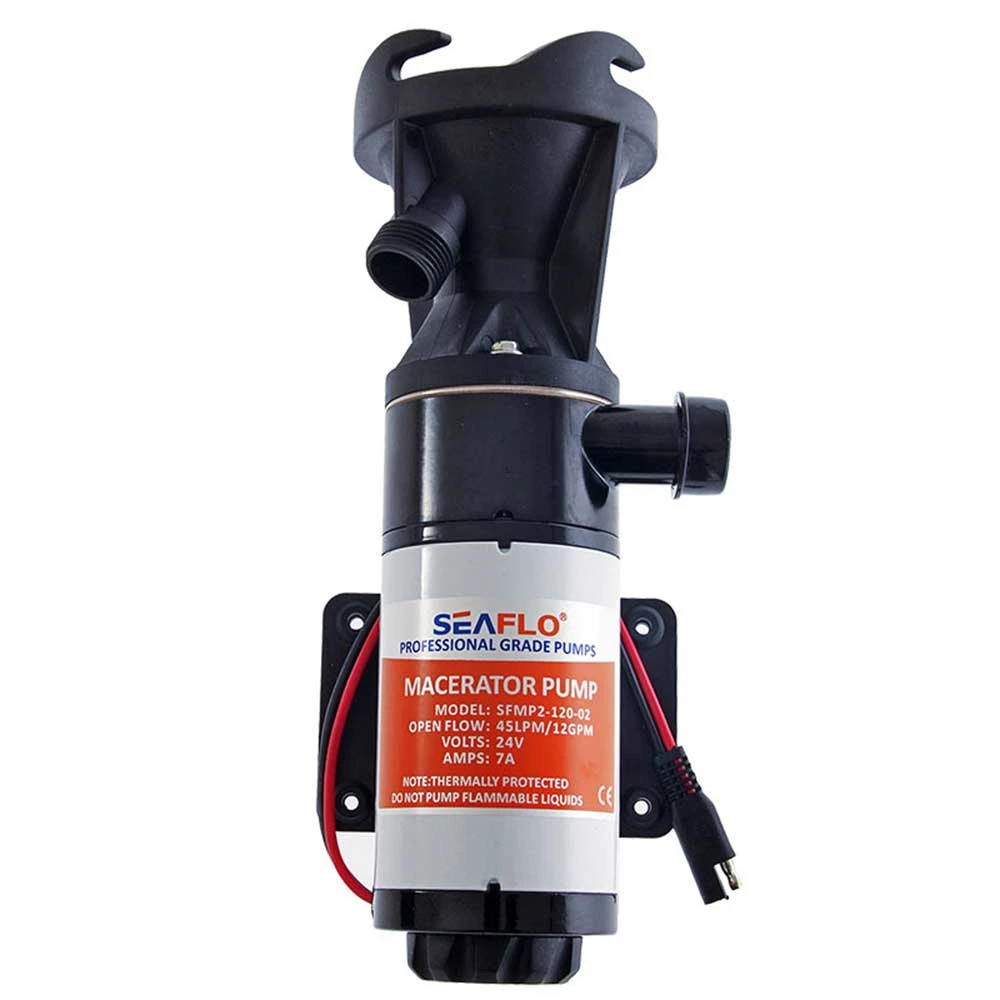

Seaflo Macerator Pump 02 Series 12v

Highly efficient macerator pump

The Seaflo Macerator Pump 02 Series is the ideal
waste emptying solution for your RV. With the quick-connect RV
fitting, this pump easily attaches and removes in seconds. It
connects directly to the waste outlet. This self-priming, powerful
macerator pump cleanly handles both the black and the grey water
from your holding tanks. The pump housing is designed to connect to
the standard three-inch waste outlet.

Seaflo Macerator Pump 02 Series Features:

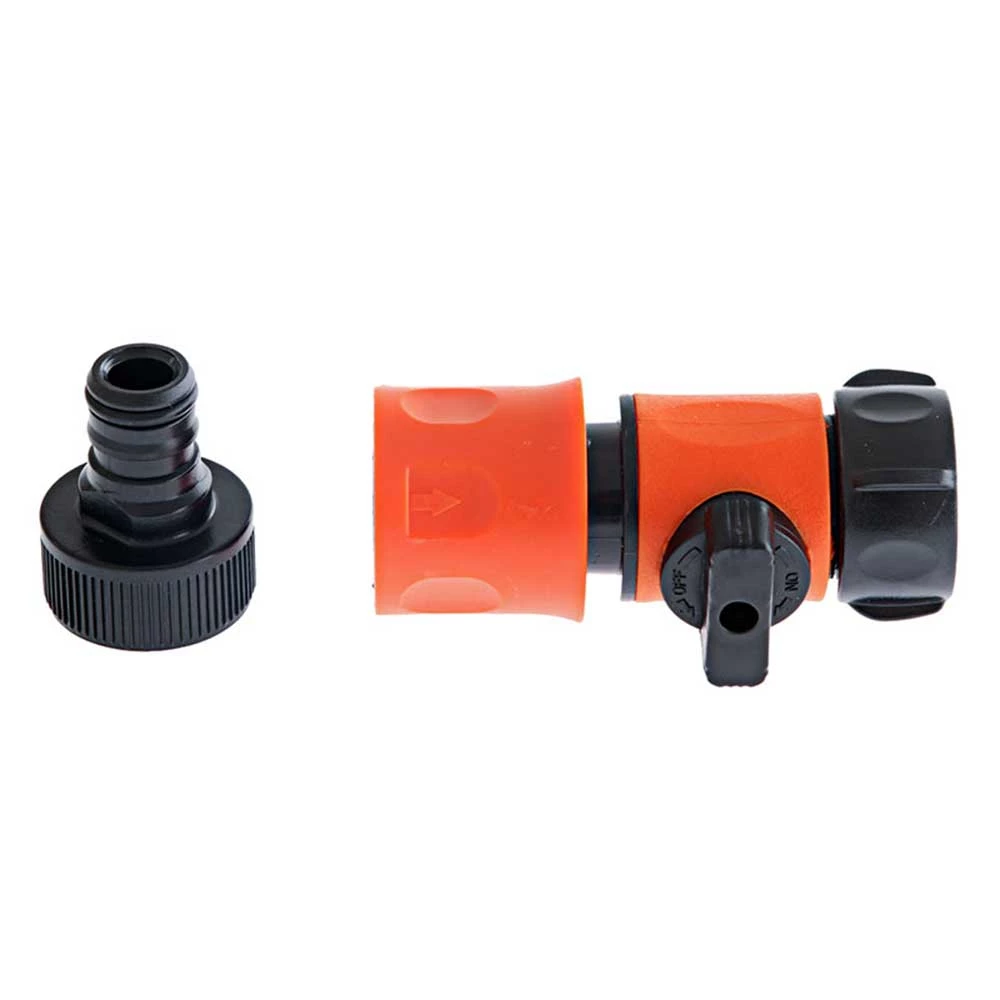

• Fresh water rinse capabilities
• Connects directly to the RV waste outlet
• Impeller can be loosened with an end back knob
• Ability to dump longer distances
• Easy clean up and storage
• New four-bladed chopper reduces clogging
• With manual blending function for emergencies
• Ideal for: RV/campers, boats, industrial, marine

Seaflo Macerator Pump 02 Series
Specifications:

• Voltage: 12v
• Dimensions: 294.5 x 147 x 132mm
• Impeller” Rubber and coppe
• Ports: 3° (75mm) RV connector 1in hose barb
• Max draw (A): 12A or 7A

Pump

• Liquid temperature: 140°F (60°C) max
• Power: 12 amps max current draw
• Inlet/outlet ports”
  Inlet: 3° (75mm) RV connector
  Outlet: 1″ hose barb
• Weight: 5.1lb (2.3kg)

Motor

• Type: high quality seamless design that is thermally
  protected
• Leads: wire leads
• Temperature limits: 195°F (90°C) max.
• Duty cycle: intermittent
• Voltage”: 12v/24v
