Tough enough for any bilge
It’s comforting to know that if your boat takes on water you can
pump it out fast. Get rid of accumulated water in the bilge in no
time with the Seaflo Series 3500GPH Submersible Bilge
Pump. This submersible bilge pump is fitted with a
stainless steel shaft and a heavy duty motor with an
impact-resistant housing. Plus, the snap-lock strainer base makes
installation and removal a breeze.

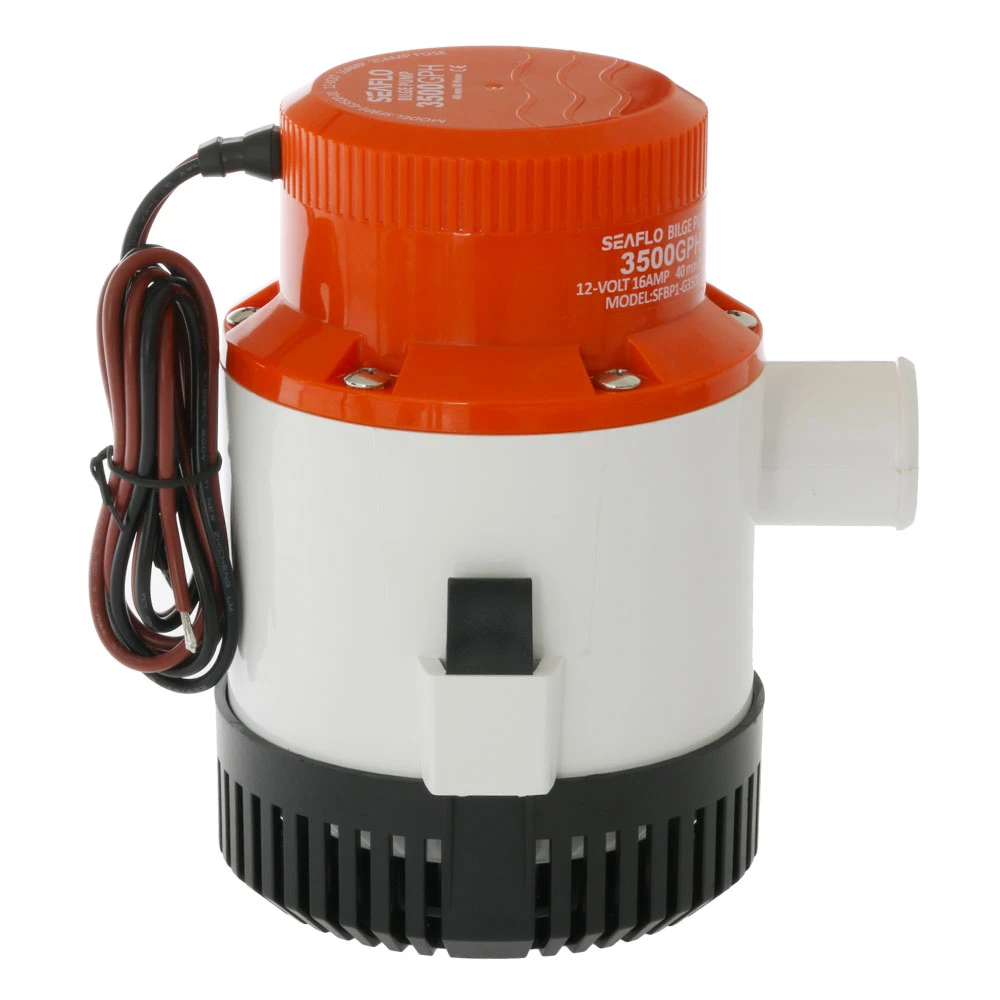

Seaflo Series 3500GPH Submersible Bilge Pump

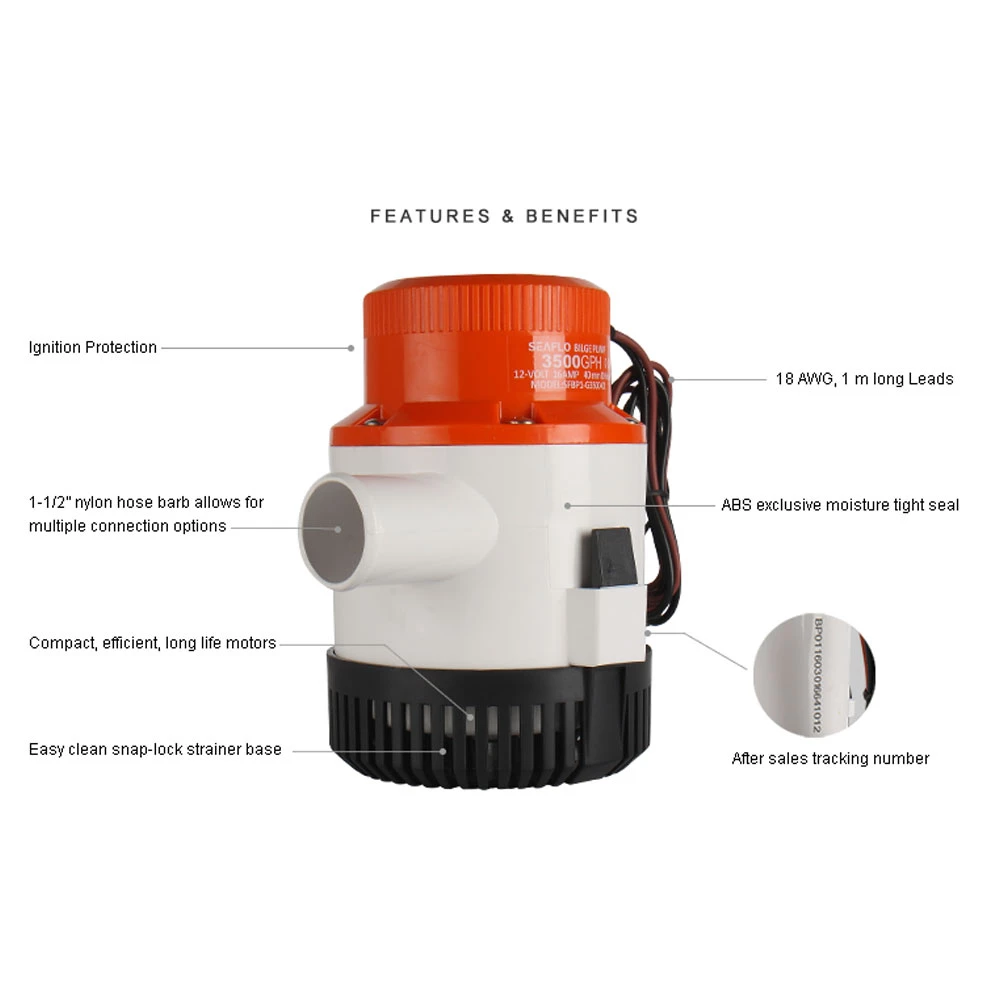

Features:
- Non-automatic bilge pump – standard action activated by a panel
or float switch - Meets or exceeds ABYC, SAE, and ISO standards
- Entirely submersible
- Sealed efficient, long life motors
- Anti-airlock protection
- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft
- Exclusive moisture tight seals
- Can be powered off a 12v car battery at 47.866 gallons per minutes
Seaflo Series 3500GPH Submersible Bilge Pump
Specifications:

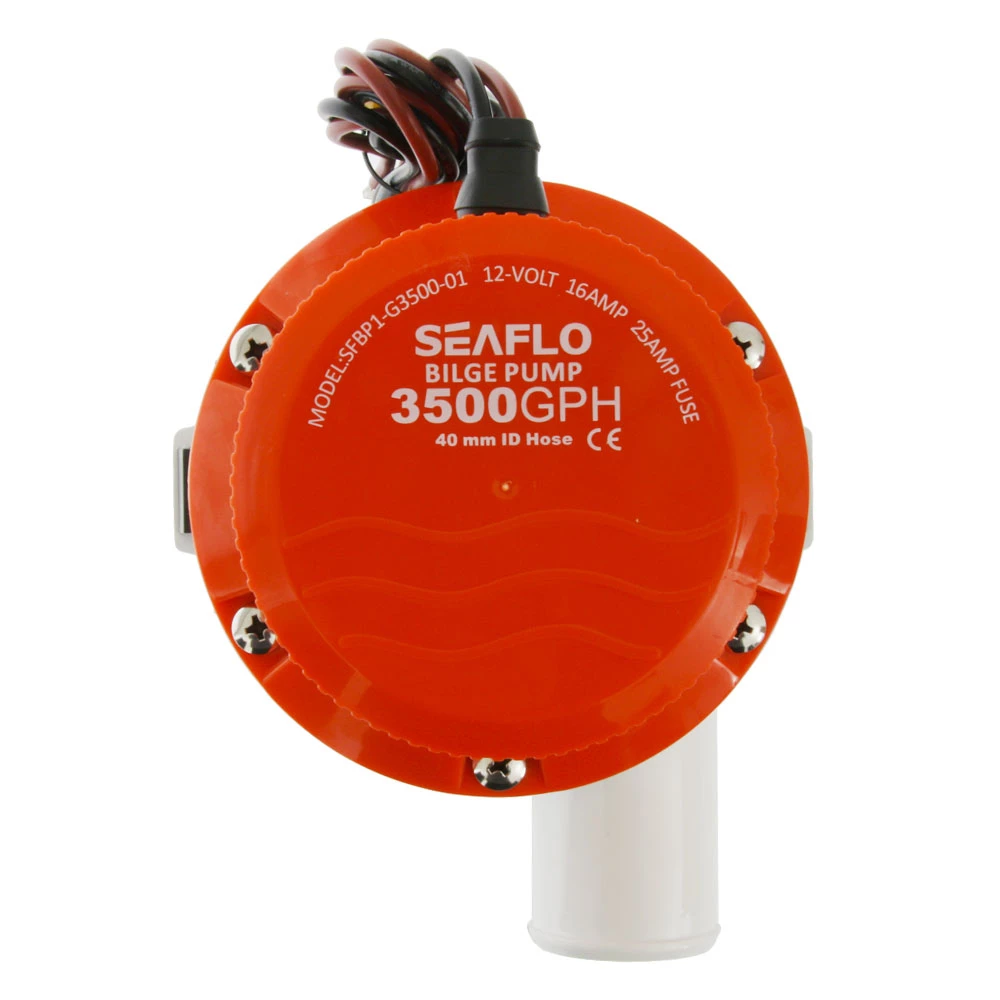

- Part number: SFBP1-G3500-01
- Typical applications: Marine 60ft, Medical, Pond, Water
Research, Solar Water System, etc. - Flow Rate: 2872 GPH
- Voltage: 12 V
- Max Draw: 25.0 A
- Fuse Amps: 25.0 A
- Head: 23′ (7 m)
- Wire Lead: 3′ (1 m)
- Outlet Dia: 1-1/2″
- N.W. / G.W.: 2.10/2.37 kg
Performance:
| Voltage(V) | Current(A) | Flow (GPH) | Flow (LPH) | Head(M) |
|---|---|---|---|---|
| OPEN | 19.7 | 2872 | 10868 | 0 |
| 12 | 20.4 | 2556 | 9672 | 1 |
| 12 | 21.1 | 1933 | 7315 | 2 |
| 12 | 21.9 | 1406 | 5321 | 3 |
| 12 | 22.8 | 844 | 3194 | 4 |
| 12 | 23.6 | 631 | 2388 | 5 |
| 12 | 24.4 | 255 | 965 | 6 |
| 12 | 25 | 0 | 0 | 7 |
